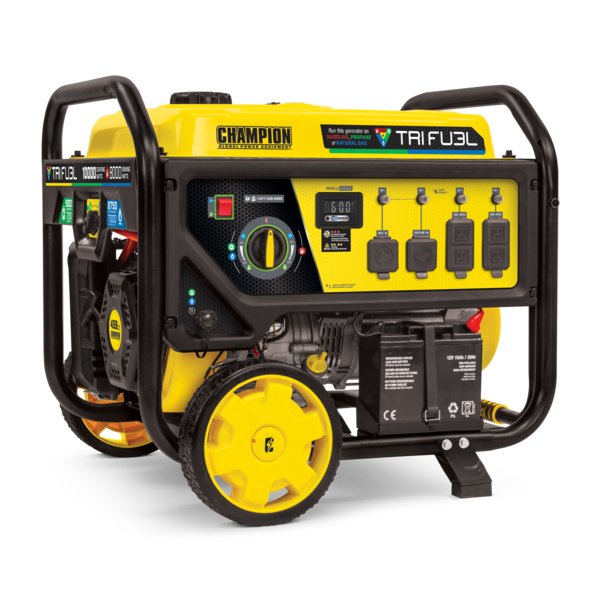

The Champion Power Equipment 100416 8000-Watt Tri-Fuel Portable Natural Gas Ready Generator with CO Shield® is a reliable source of power with the flexibility you need. When you are not running your generator on natural gas, you also have the option of operating it on gasoline or propane. The ability to operate your generator on three types of fuel out of the box makes this one of the most versatile generators on the market.

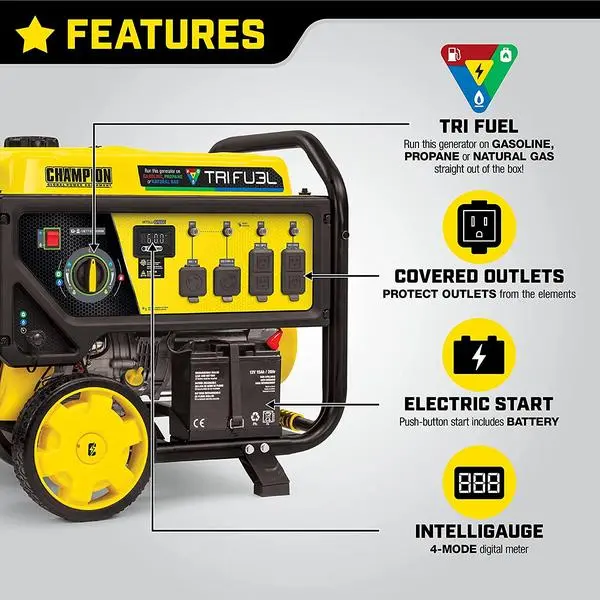

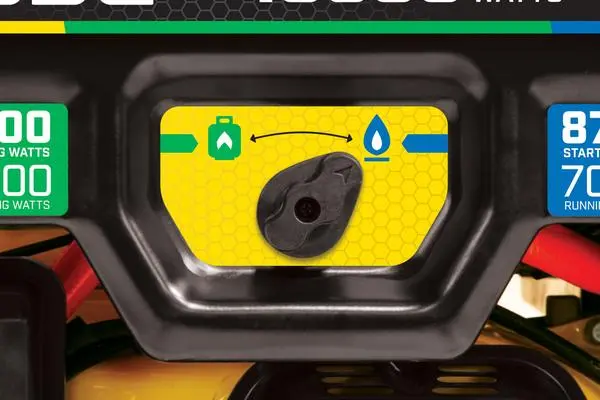

The EZ Start dial allows you to safely select gasoline, propane (LPG), or natural gas (NG) as your fuel source, plus a propane/natural gas selector is located on the side panel.

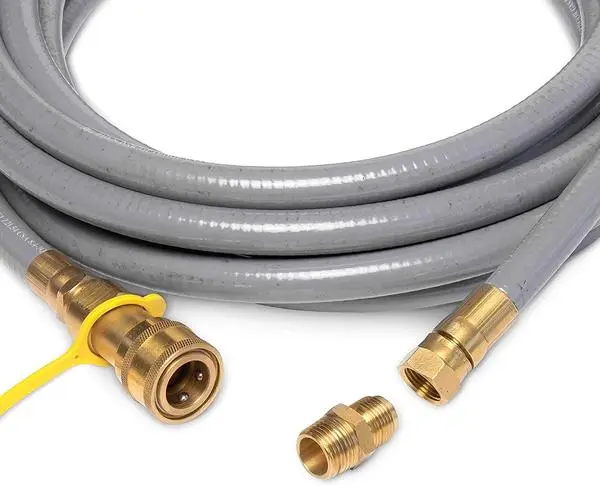

Using natural gas, the engine produces 8750 starting watts and 7000 running watts. A 6-foot propane hose with a built-in regulator is included. To connect this generator to your home’s natural gas source, this generator includes a 25-foot NG hose kit, which includes a female quick connect end, a female flare fitting end and an NPT male adapter.
Using gasoline, the 459cc Champion engine produces 10,000 starting watts and 8000 running watts, and will run for 12.5 hours at 50% load when the 8.5-gallon fuel tank is full. When using a 20-pound propane tank, it produces 9000 starting watts and 7200 running watts, and will run for 5 hours at 50% load.
The electric start includes a battery, plus Cold Start Technology ensures quick cold-weather starts. With a 1.2-quart oil capacity, this unit has a low oil shut-off sensor and includes engine oil – all you need is fuel!
Easily monitor power output and track maintenance intervals with Intelligauge, which allows you to keep track of voltage, frequency, session run time, and total run time to easily monitor output and track maintenance intervals.
This generator has a noise level of 74 dBA from 23 feet, which is a bit louder than a vacuum.
The covered outlets include a 120V 30A locking outlet (L5-30R), a 120/240V 30A locking outlet (L14-30R) and four 120V 20A GFCI protected household outlets (5-20R).
Buy this EPA certified and CARB compliant generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

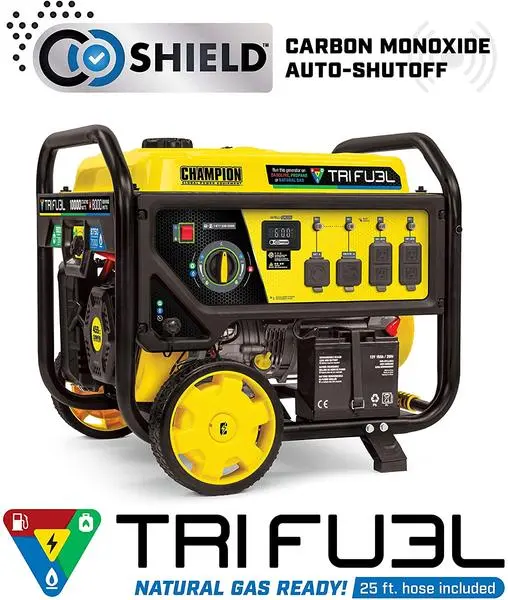

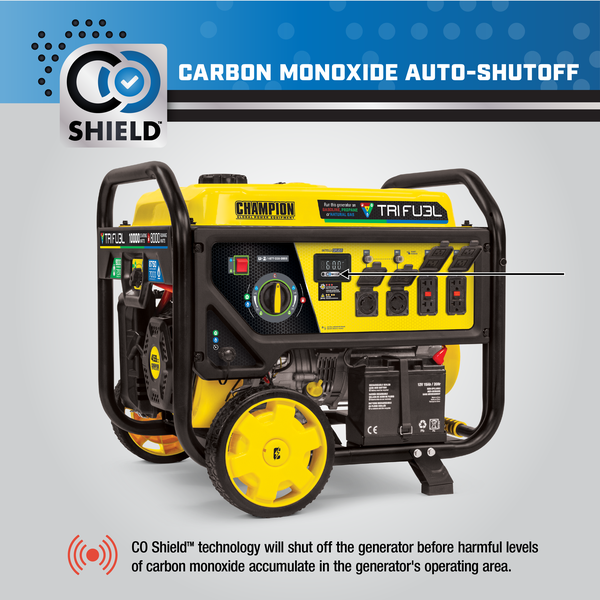

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.

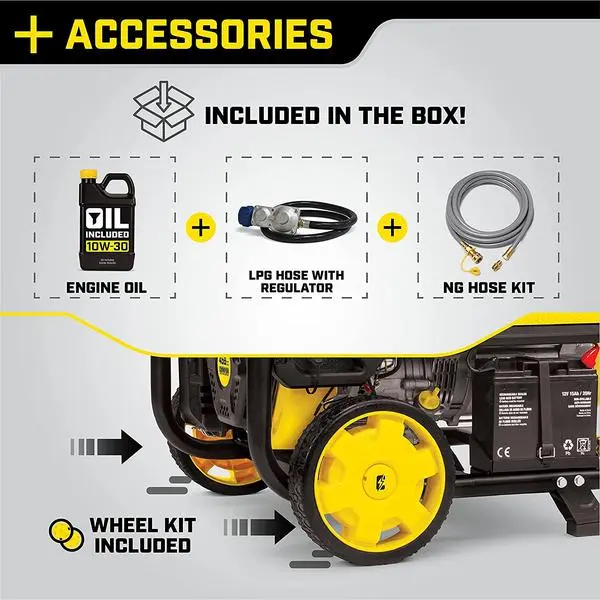

What’s included
- Engine Oil
- Oil Funnel
- Natural Gas Hose with NPT Adapter
- Propane (LPG) Hose
- Wheel Kit
SPECIFICATIONS
| Portable Generator Technology | Tri Fuel, CO Shield® |
|---|---|
| Gasoline Starting Watts | 10000W |
| Gasoline Running Watts | 8000W |
| Propane Starting Watts | 9000W |
| Propane Running Watts | 7200W |
| Natural Gas Starting Watts | 8750W |
| Natural Gas Running Watts | 7000W |
| Gasoline Starting Amps at 120V | 83.3A |
| Gasoline Starting Amps at 240V | 41.7A |
| Gasoline Running Amps at 120V | 66.7A |
| Gasoline Running Amps at 240V | 33.3A |
| Propane Starting Amps at 120V | 75A |
| Propane Starting Amps at 240V | 37.5A |
| Propane Running Amps at 120V | 60A |
| Propane Running Amps at 240V | 30A |
| Natural Gas Starting Amps at 120V | 72.9A |
| Natural Gas Starting Amps at 240V | 36.5A |
| Natural Gas Running Amps at 120V | 58.3A |
| Natural Gas Running Amps at 240V | 29.2A |
| Volts | 120/240 |
| Frequency | 60Hz |
| Outlets | GFCI 120V 20A Duplex (5-20R) (2), 120V 30A Locking (L5-30R), 120/240V 30A (L14-30R) |
| GFCI Outlets | Yes |
| Covered Outlets | Yes |
| Covered Circuit Breakers | Yes |
| Gasoline Run Time at 1/2 Load | 12.5 h. |
| Propane Run Time at 1/2 Load | 5 h. |
| Noise Level | 74 dBA |
| Parallel Capability | No |
| DC Operation | No |
| Voltmeter | Intelligauge |
| Automatic Voltage Regulation | No |
| Battery | Yes |
| Start Type | Recoil, Electric |
| Engine Brand | Champion |
| Engine Size | 459cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Gasoline, Propane (LPG), Natural Gas (NG) |
| Fuel Gauge | Yes |
| Gasoline Capacity | 8.5 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 1.1 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 10 in. |
| PGMA G300-2018 Compliant | Yes |
| EPA Certified | Yes |
| CARB Compliant | Yes |
DIMENSIONS
| Length | 27.6 in. |
|---|---|
| Width | 28.2 in. |
| Height | 26 in. |
| Weight | 207 lb. |
