This generator never needs refueling operating on your home’s NG or LP fuel supply, starts automatically when utility power goes out, and turns off automatically when utility power is restored. The battery keeps a charge and operates in temperatures ranging from -22° to 104° F.

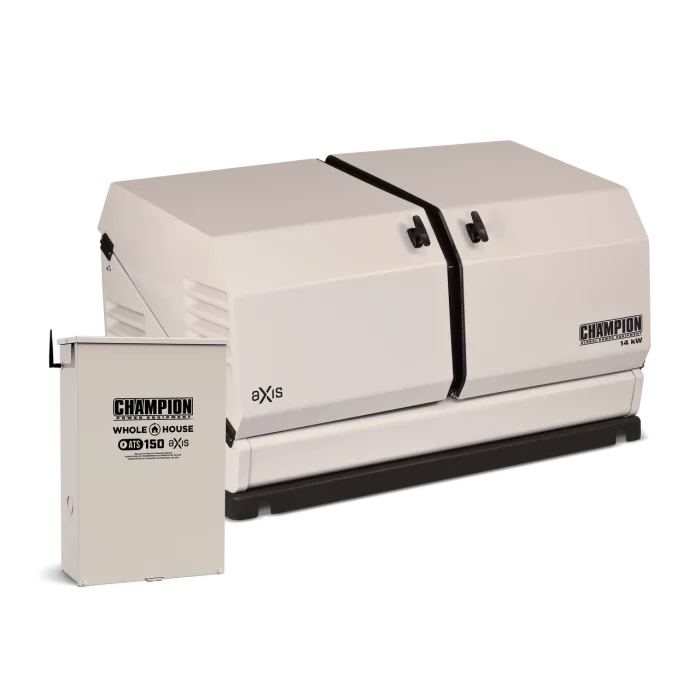

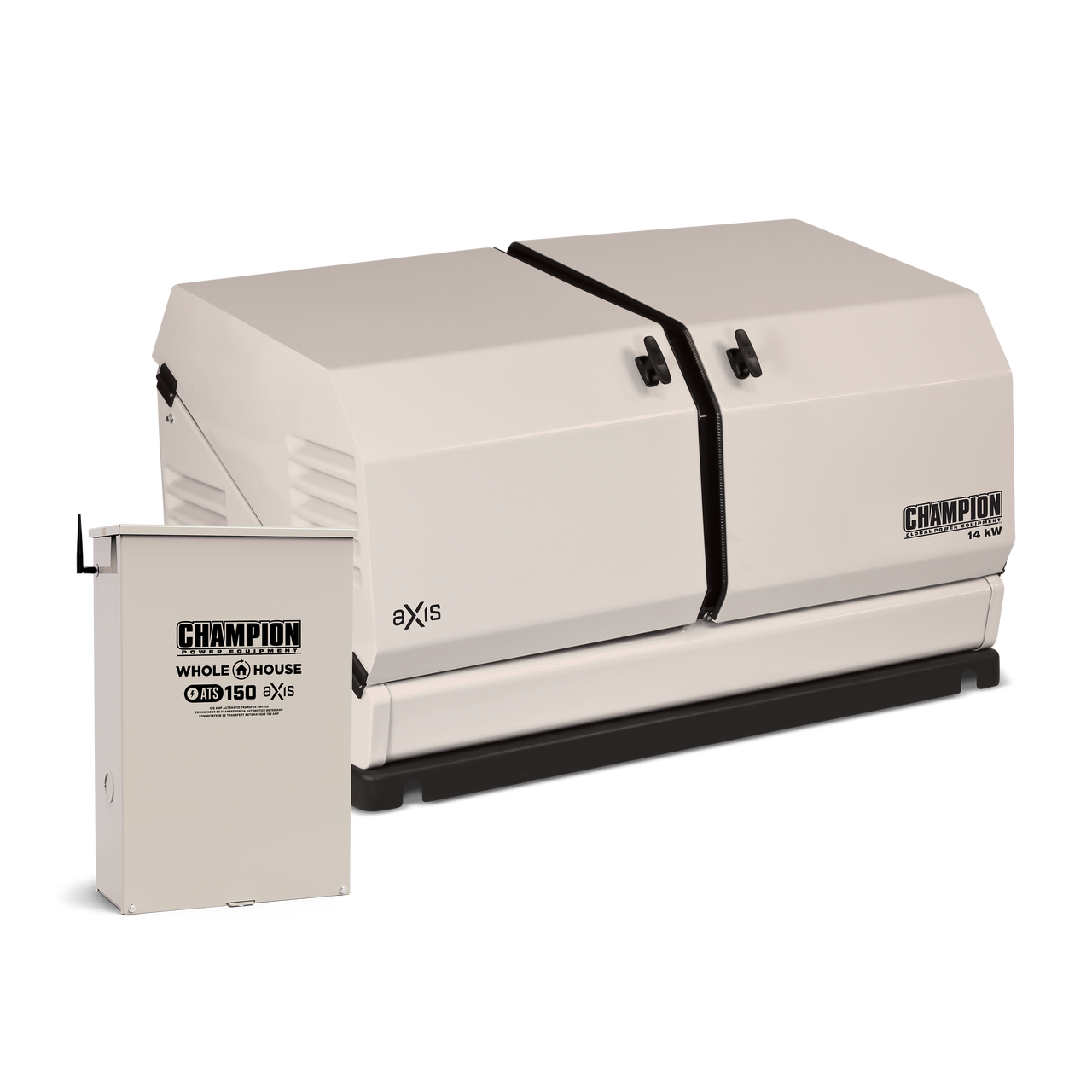

The Champion aXis platform is a programmable, upgradable home standby system. The digital aXis Controller™ is equipped to provide monitoring and protection for the HSB. Power Line Carrier technology allows the system to communicate using your home’s existing wiring so your generator can talk to the automatic transfer switch and other components without needing to run separate wires, saving you money and time. With aXis Wi-Fi Direct your installer can use a tablet or phone to program your generator meaning faster setup and lower cost.
| Détails | |
|
Rated Watts
|
14kW LP Propane / 12.5kW Natural Gas |
|
Rated Amps
|
58.3 Amps LP Propane / 52 Amps Natural Gas |
|
Voltage
|
120/240-Volts Single Phase |
|
AC Ton Rating
|
5-Ton |
|
Enclosure
|
Steel |
|
UL Listed
|
UL-2200 |
|
Decibel Rating 7m
|
62 dBA |
|
Starting System
|
Automatic |
|
Low Oil Alert
|
Low Oil Shutdown |
|
Mainline Breaker
|
65 Amps |
|
Battery Requirements
|
Two – 12-Volt, Group U1, 350CCA (not included) |
|
Mounting Pad
|
Composite |
|
Dimensions
|
50.0L x 30.1W x 50.1H |
|
Engine Brand
|
Milwaukee Series OHV Commercial V-Twin |
|
Engine Size
|
754 cc |
|
Engine RPM
|
3600 |
|
Cast Iron Sleeve
|
Yes |
|
Cooling System
|
Air Cooled |
|
Alternator Type
|
Single Pole Single Phase |
|
Frequency
|
60 Hz |
|
Auto Voltage Regulation
|
Yes |
|
Gauge
|
No |
|
NG Power Capacity
|
12.5kW |
|
LP Power Capacity
|
14kW |
|
NG Consumption Full Load
|
180.1 Cubic Feet per Hour |
|
NG Consumption Half Load
|
116.5 Cubic Feet per Hour |
|
LP Consumption Full Load
|
2.6 Gallons per Hour |
|
LP Consumption Half Load
|
1.6 Gallons per Hour |
|
Switch Amps
|
150 Amps |
|
Switch Circuits
|
Whole House Switch |
|
ATS Poles
|
2 |
|
Switch Weight
|
43 |
|
Consumer Warranty
|
Champion 10-Year Limited Warranty |
|
Marque
|
Champion |
