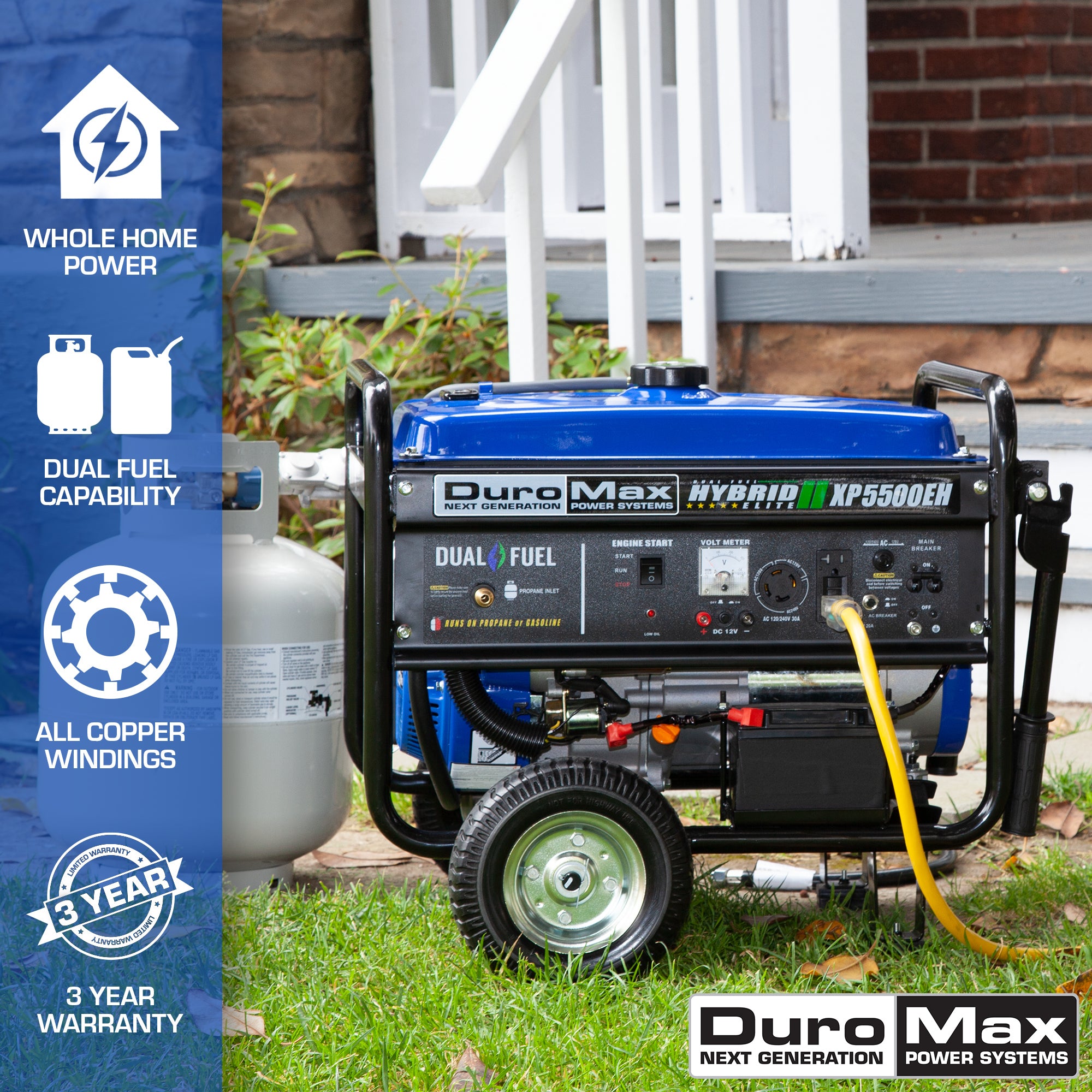

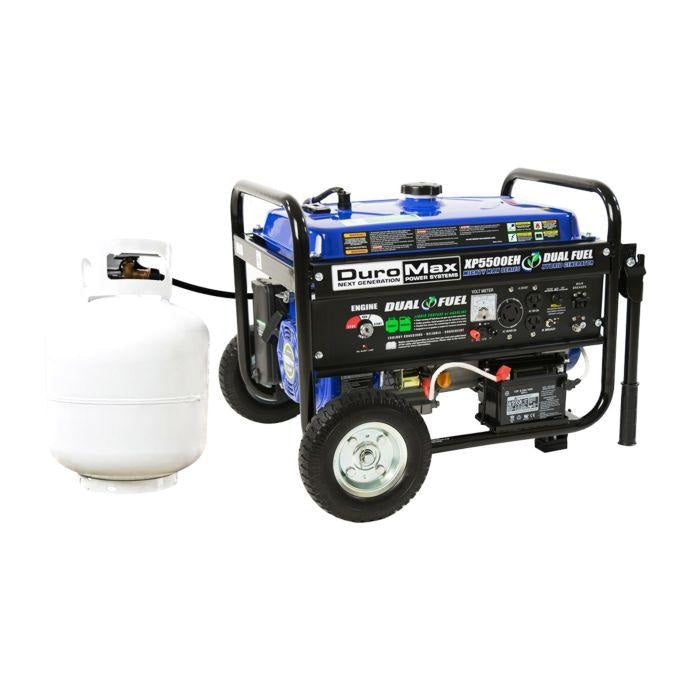

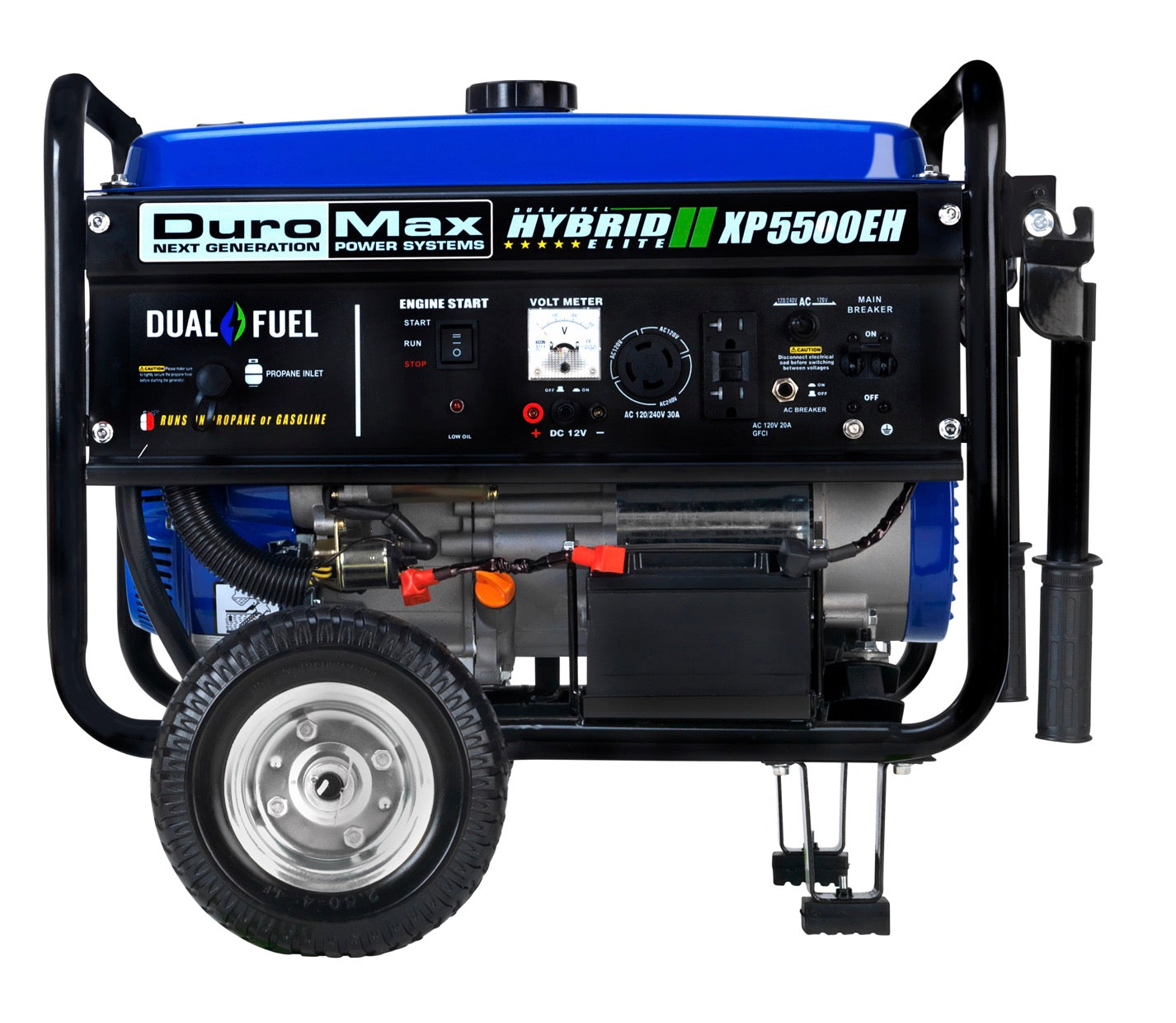

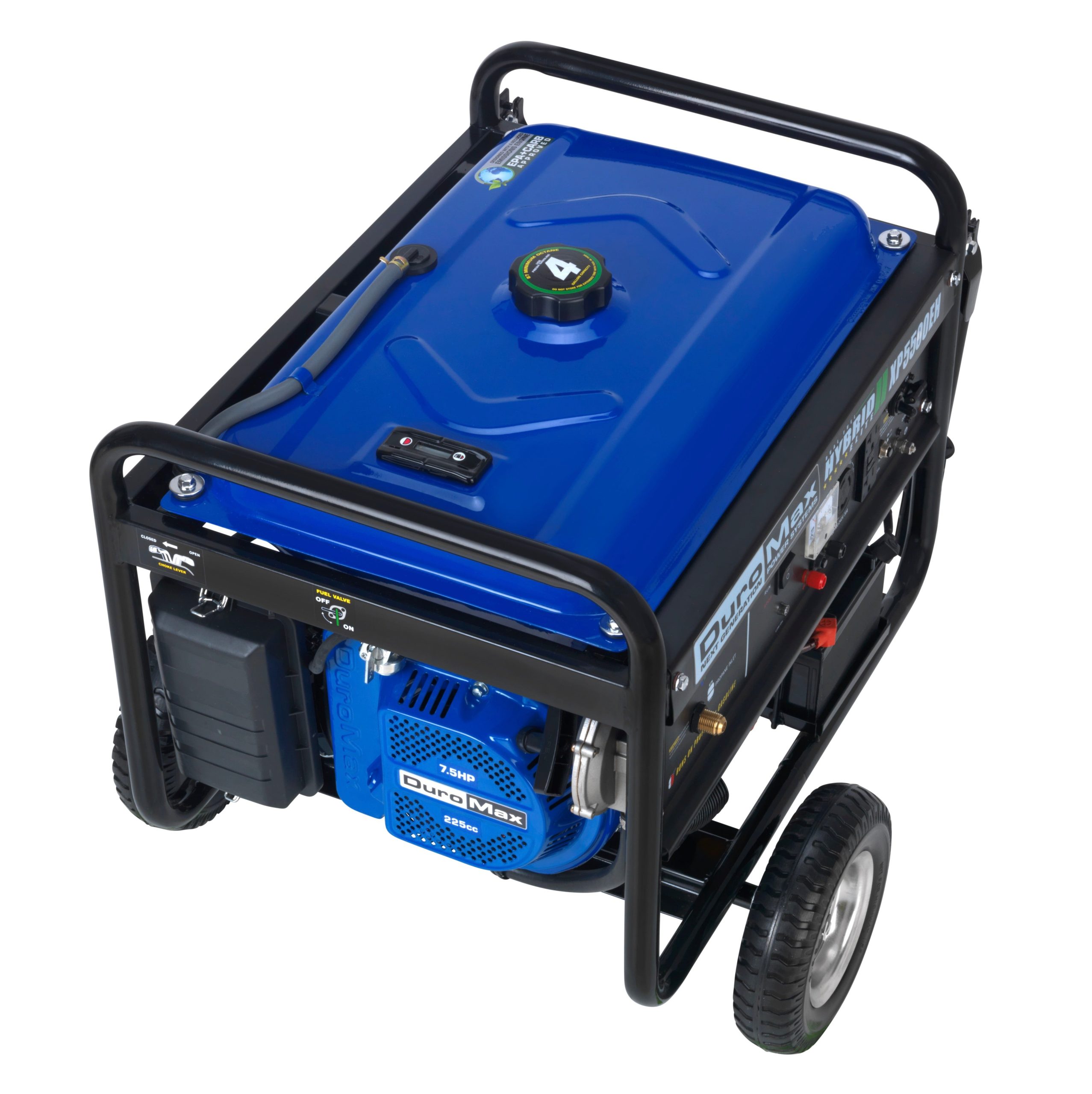

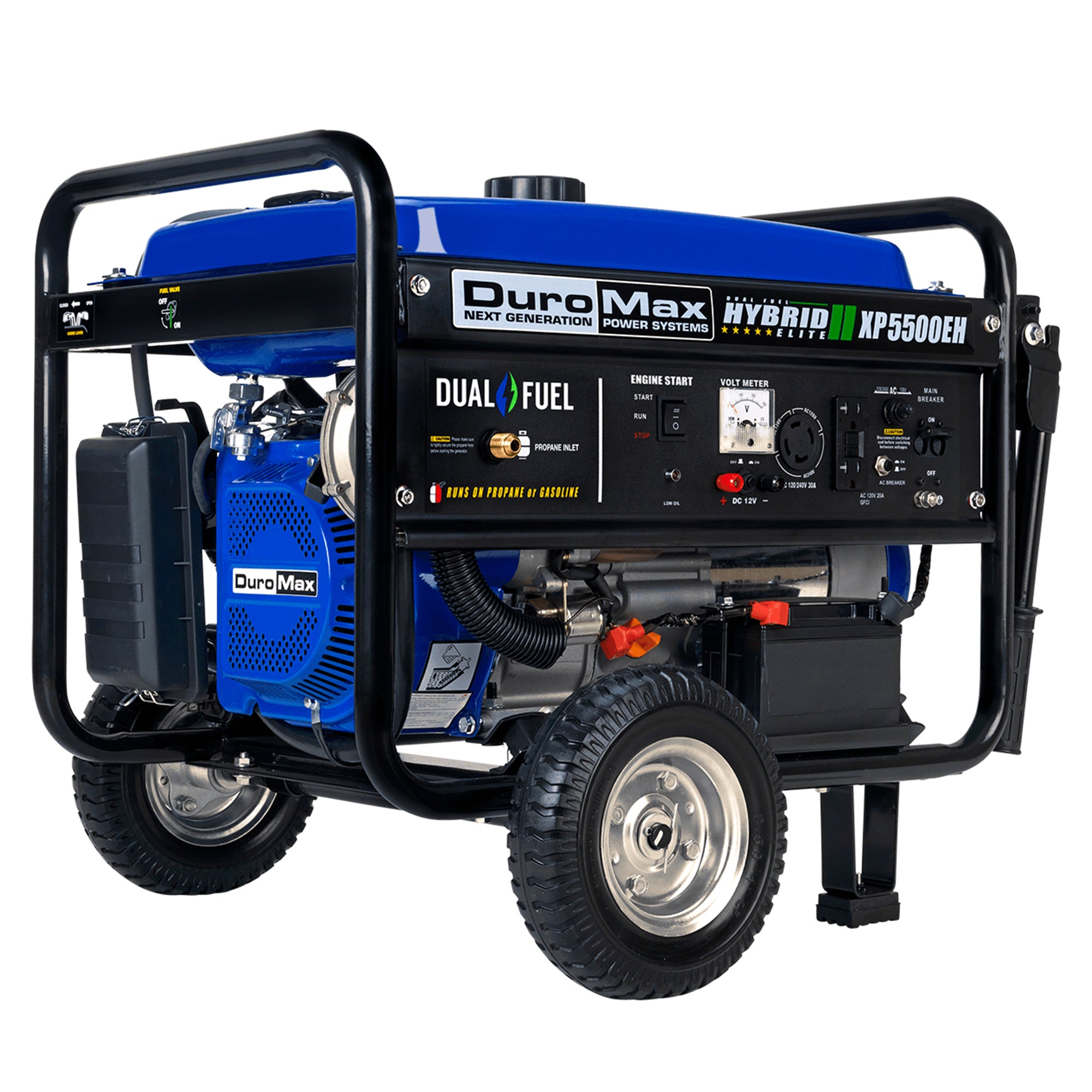

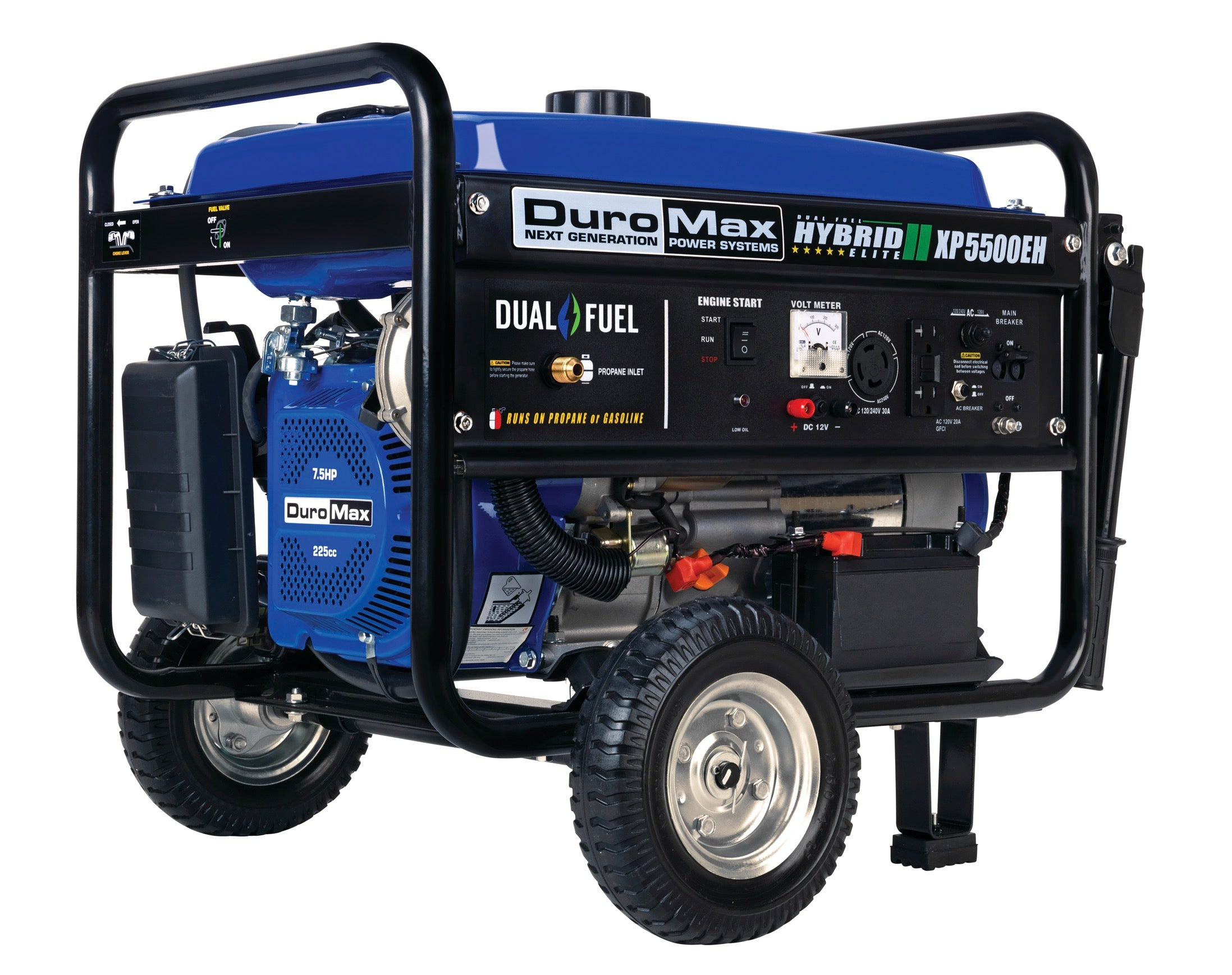

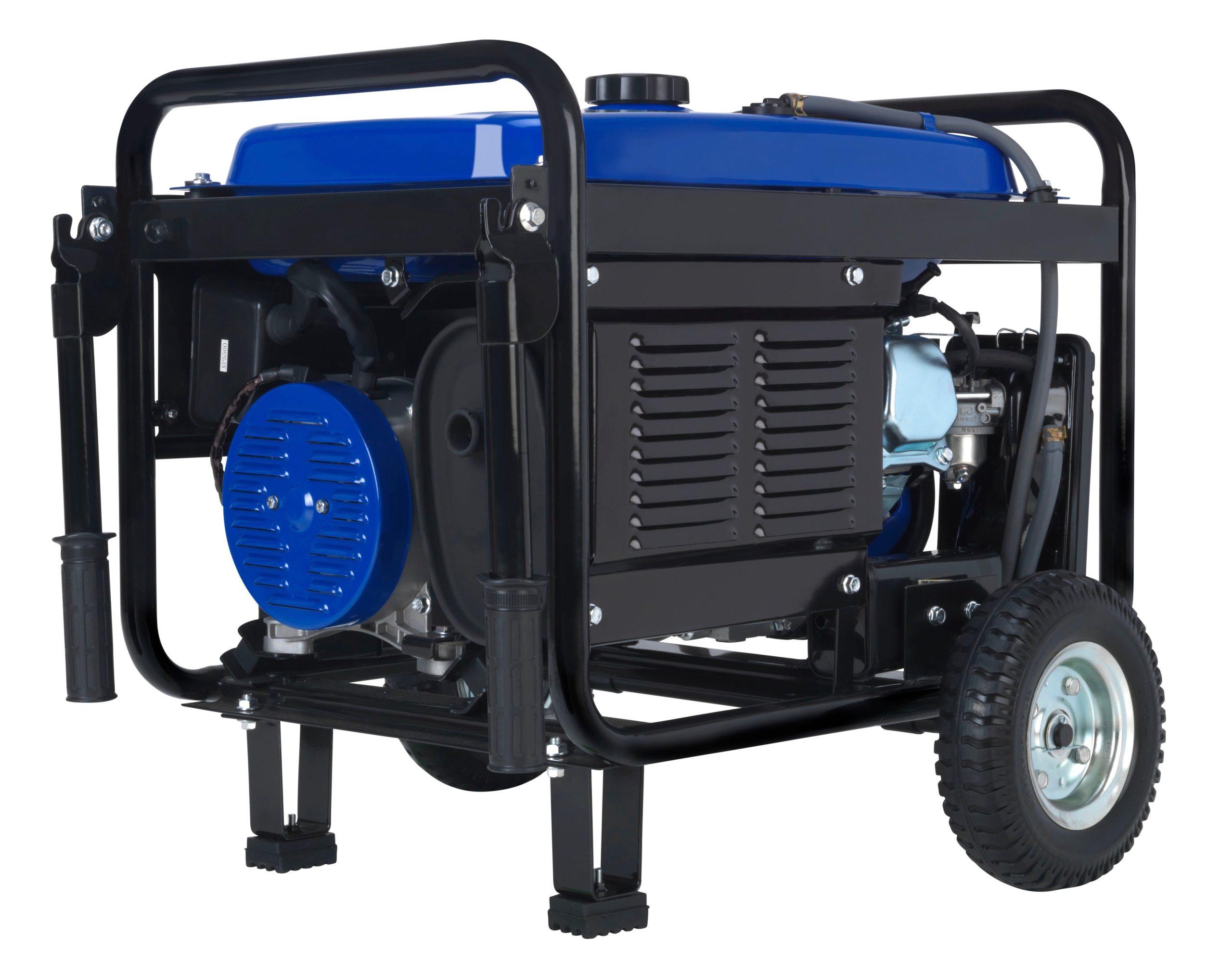

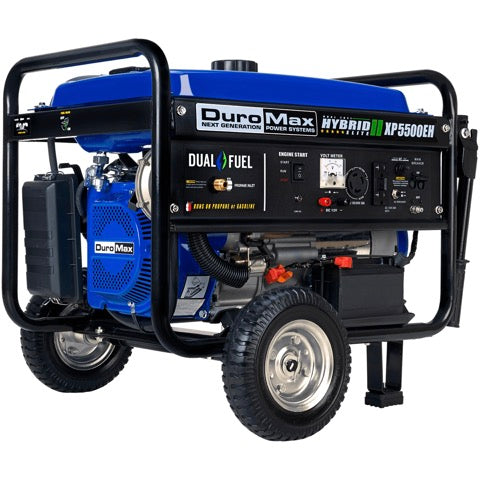

DuroMax 5500-Watt Electric Start Dual Fuel Hybrid Portable Generator XP5500EH

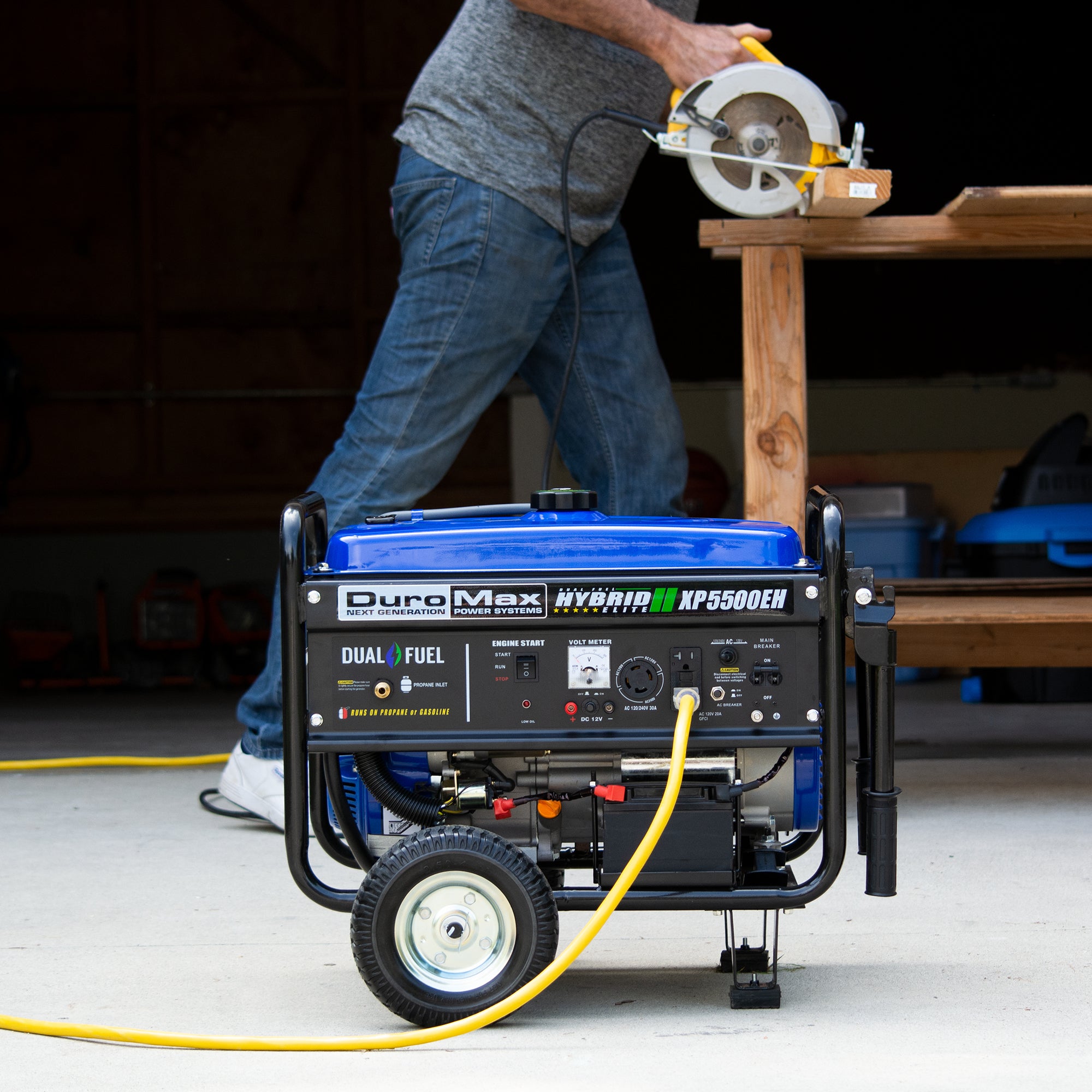

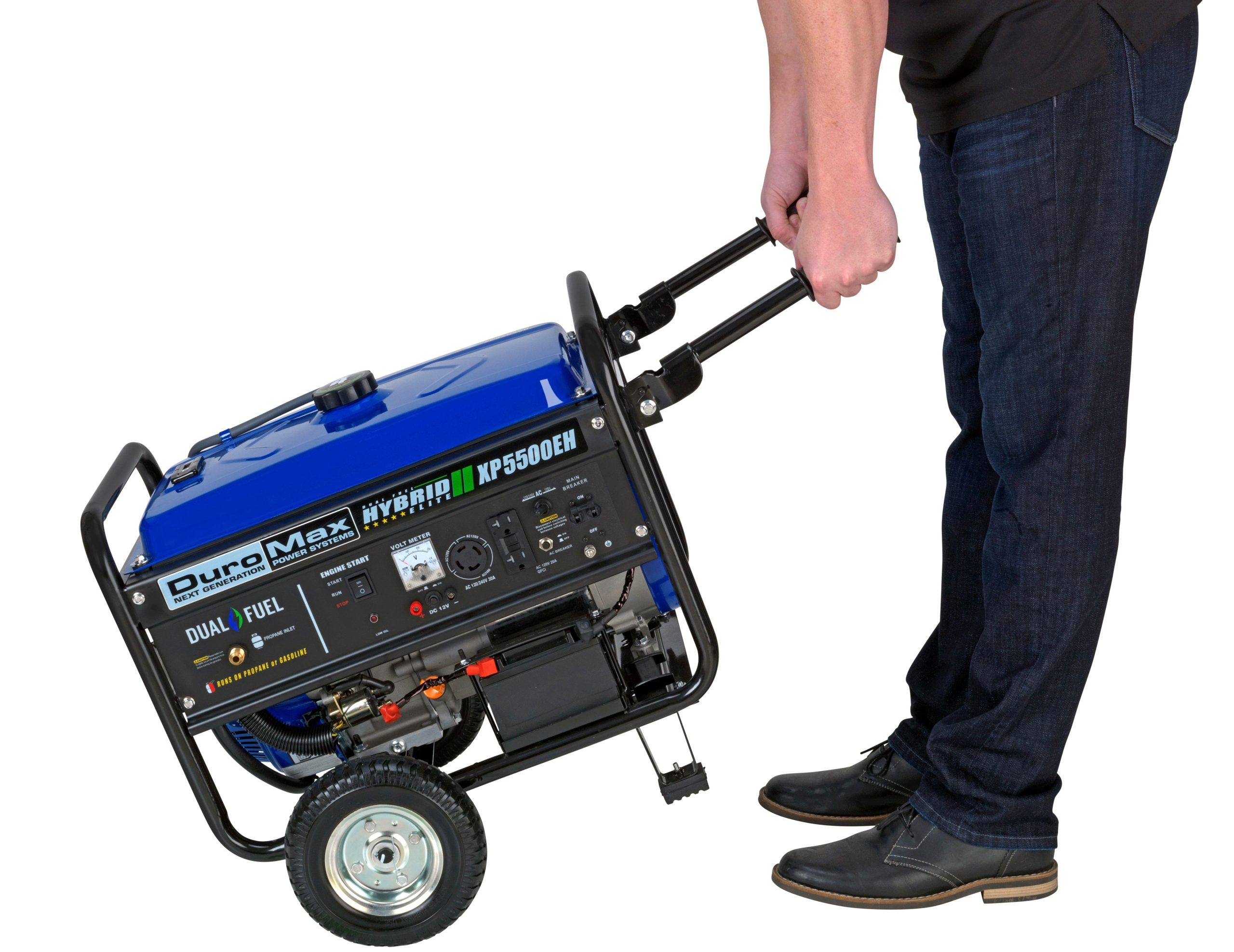

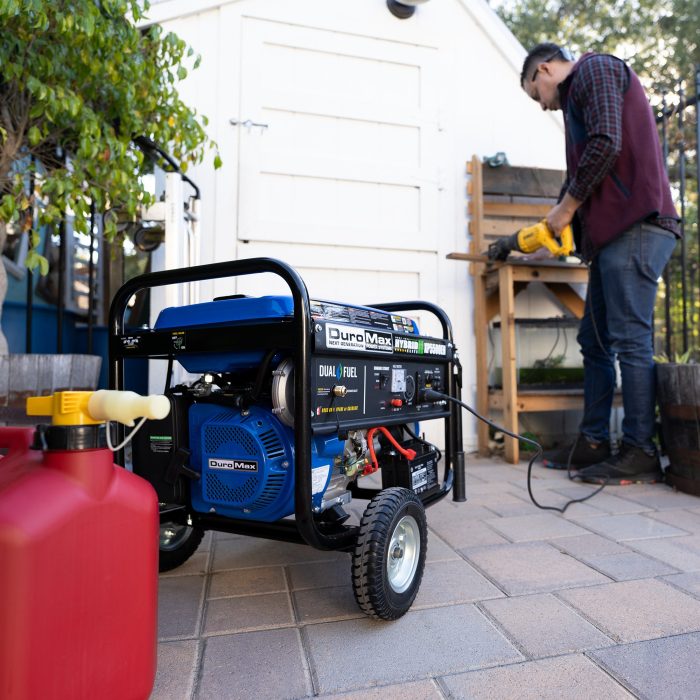

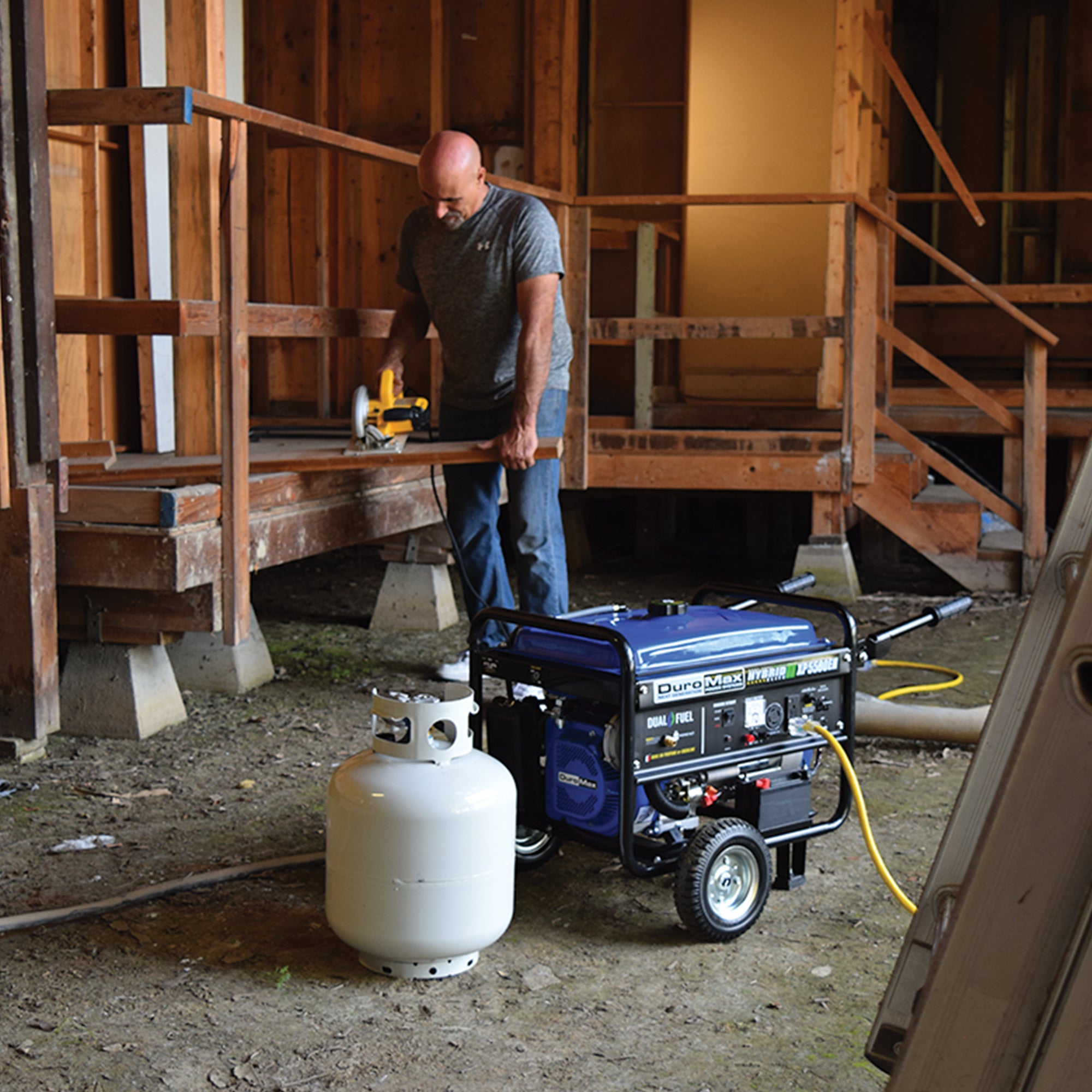

The DuroMax XP5500EH is designed as a user-friendly unit that provides 5,500 watts of POWER. Dual Fuel Technology allows you to operate your generator on gas or liquid propane, giving you the freedom and flexibility of fuel choice. This durable unit is perfect on the jobsite and is easy to transport for tailgating or camping. The XP5500EH packs a punch and will keep you powered at home, on an RV trip, or at work!
Features:
Power Wherever and Whenever You Need It
With 5,500 watts of power, the XP5500EH Dual Fuel generator will keep you powered at home or on the go.

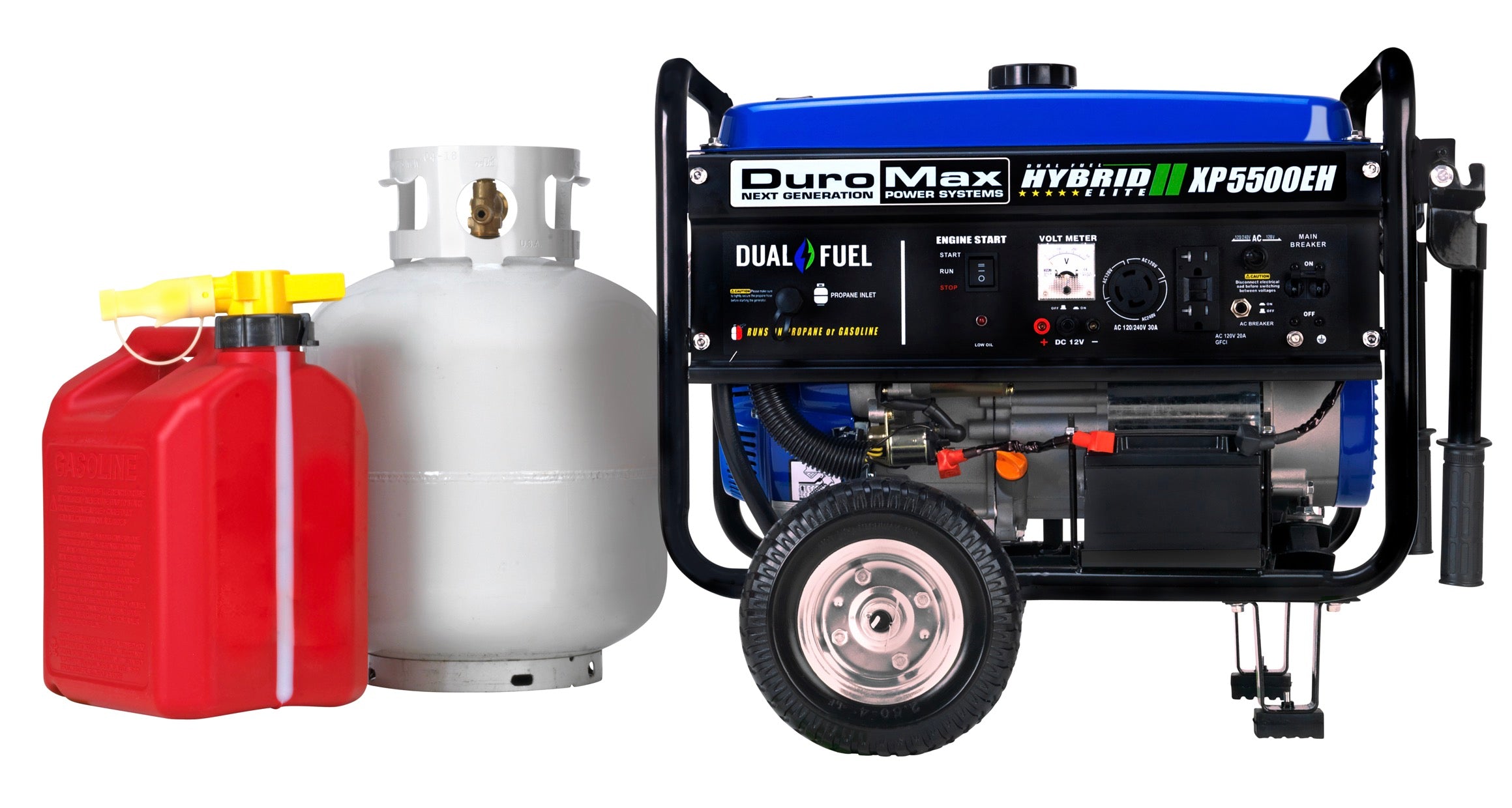

Dual Fuel Technology
DuroMax is the industry leader in Dual Fuel portable generator technology, with a full assortment ranging from digital inverters to generators that can power your entire home.

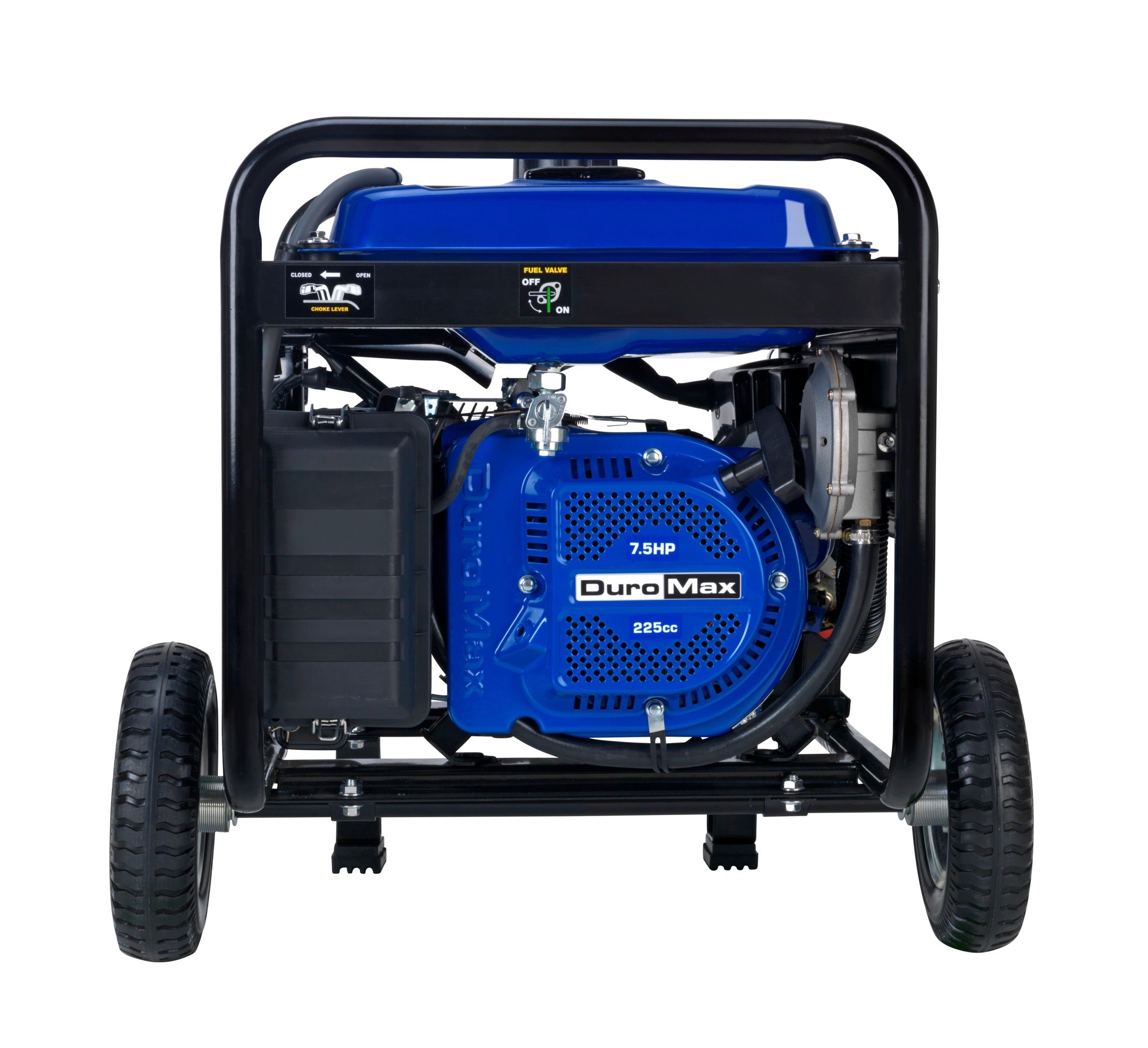

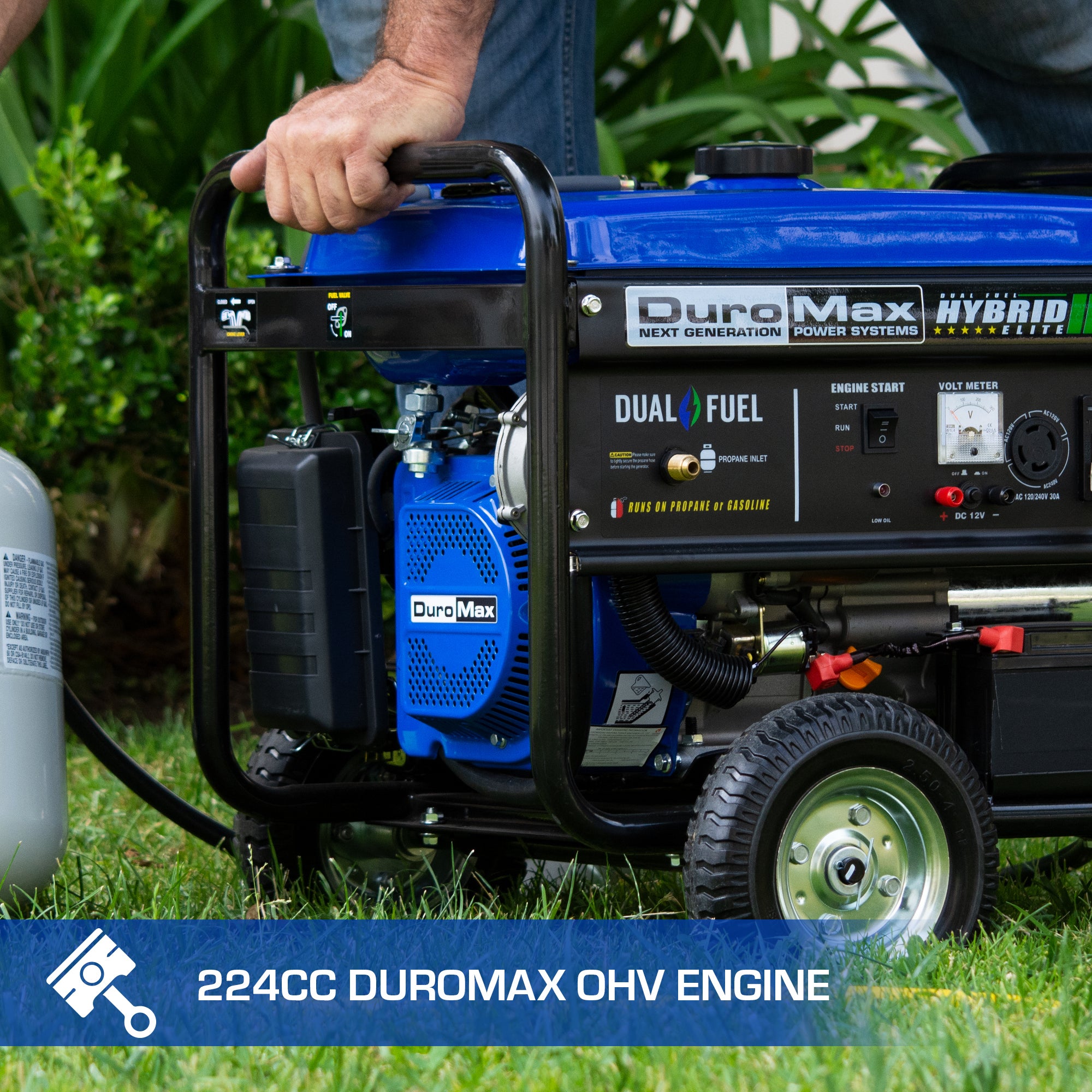

The Heart of a DuroMax
At the core of all our products resides a robust DuroMax engine. Designed for Power. Designed to Last.

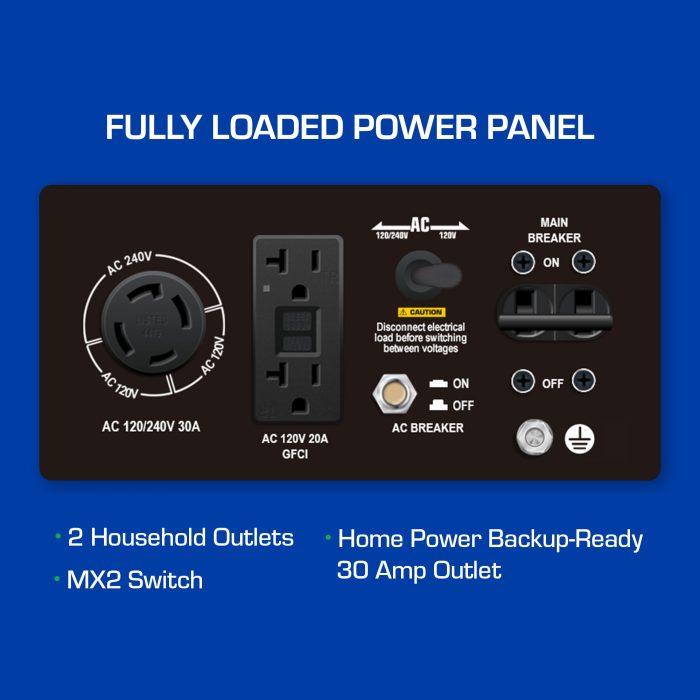

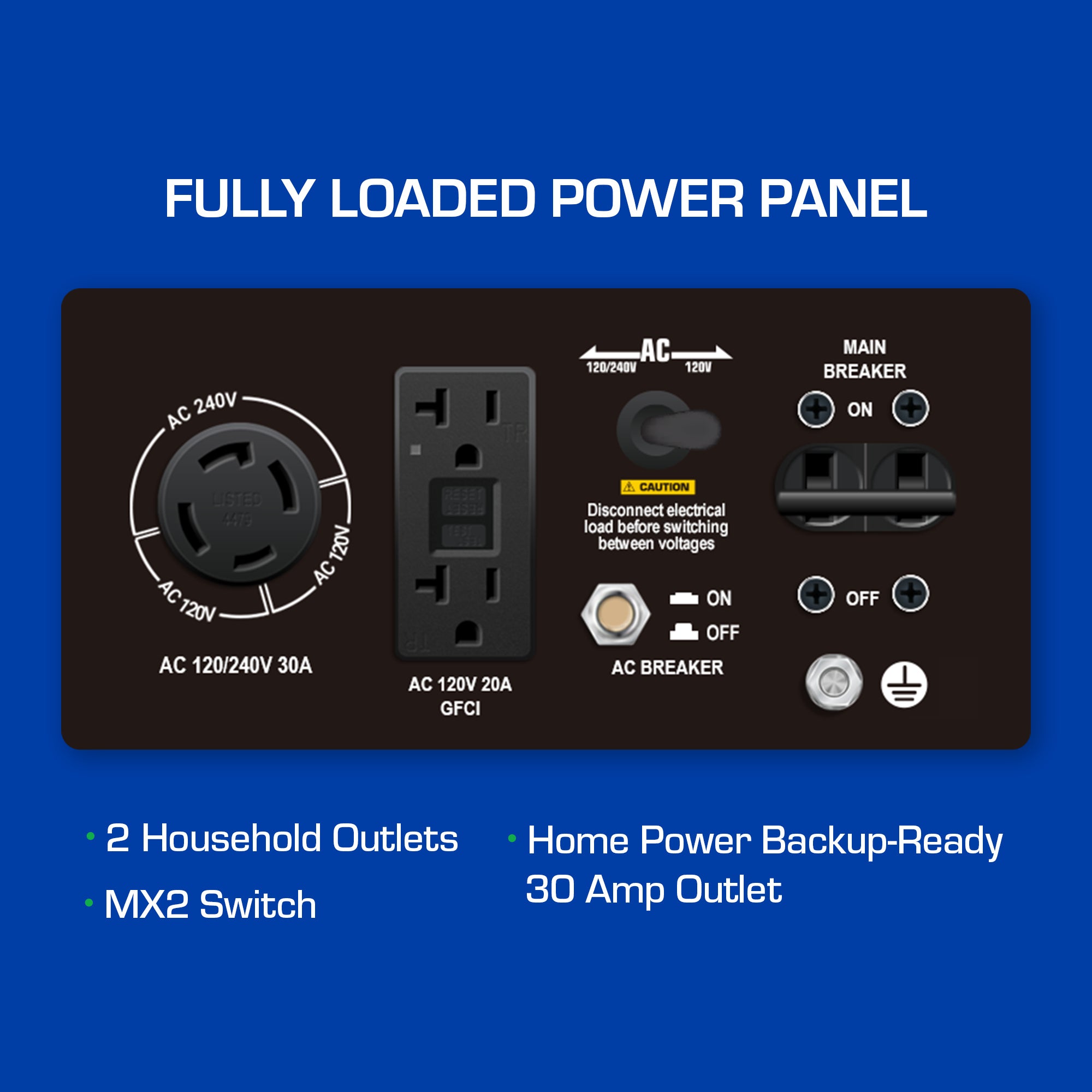

FULLY LOADED

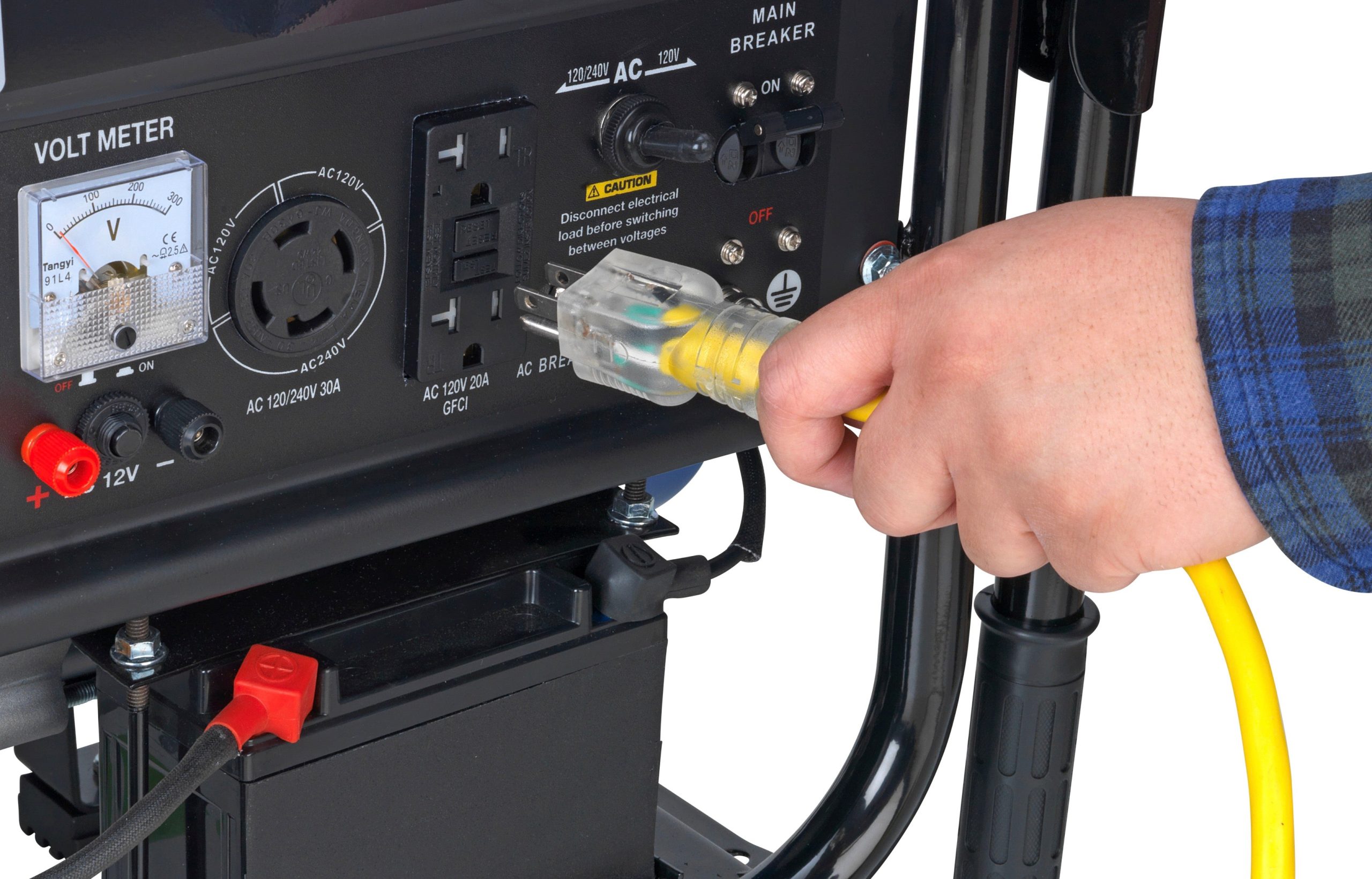

Power Panel
The XP5500EH comes equipped with a variety of outlets to suit your needs. This generator features our MX2 Power Boost, which doubles the 120V power for appliances and RVs.

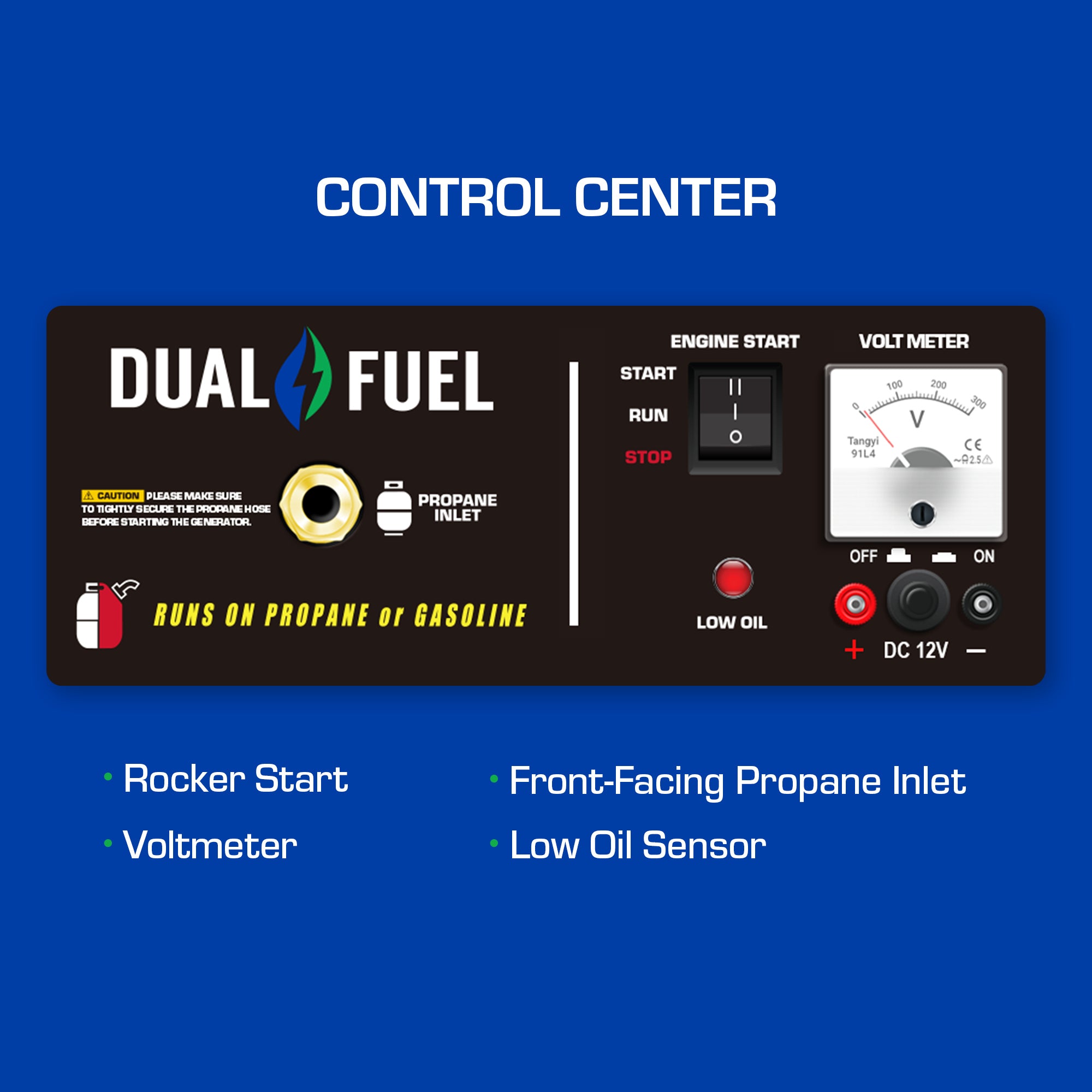

Start Button
Toggle Start: This engine switch engages the starter motor and allows for electric start.
Volt Meter
Our analog volt meter allows you to easily check your output voltage.
120/240V 30 AMP
A conventional NEMA L14-30 outlet for an easy connection to most 30 Amp transfer switches for your home back up power needs.
120V 20 Amp GFCI
A convenient GFCI NEMA 5-20 outlet to OSHA standards with high compatibility for a direct connection to most 120V household products.
MX2 Power Boost
Our exclusive MX2 Power Boost is an indispensable feature for RV enthusiasts. Get the maximum power from each of the 120-volt receptacles – choose between operating the generator at both 120V and 240V simultaneously, or at 120V-only with full power, turning it to one powerhouse circuit.
Circuit Breaker
A safety feature that will help keep you and the generator protected in the event of an overload or short circuit.
Low Oil Alert
Designed with safety in mind to shut the engine down if the engine oil becomes too low and keep your engine protected.
DC Circuit Protector
This protects the DC power output components that are used for charging the onboard 12V battery and external 12V battery connected using the generator charging leads (included in the box).
| XP5500EH Specifications | |
|---|---|
| Gasoline | |

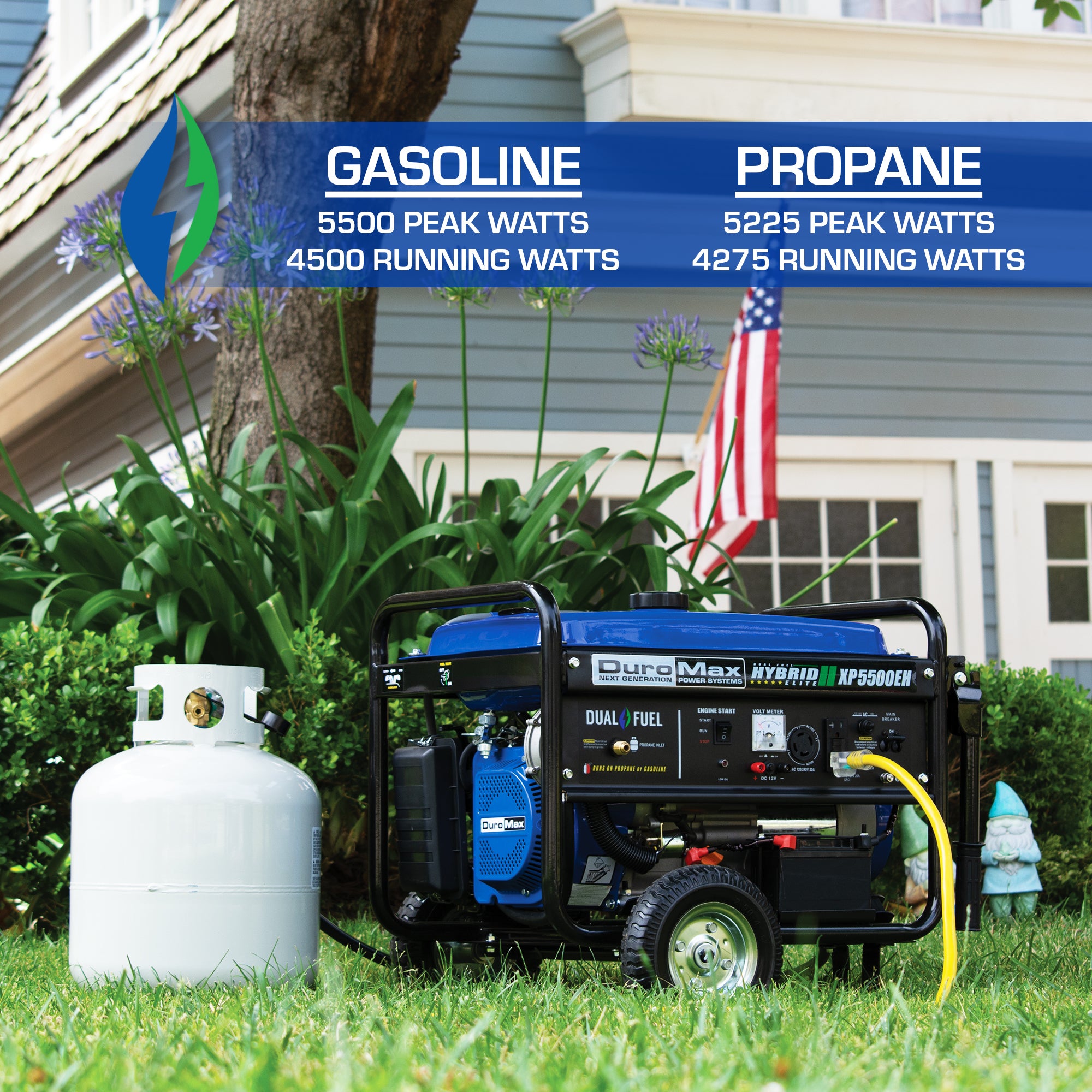

| Peak Wattage | 5,500 |
| Running Wattage | 4,500 |
| Running Amperage at 120V | 37.5 |
| Running Amperage at 240V | 18.75 |
| Runtime at 25% Load | 19 |
| Runtime at 50% Load | 9 |
| Propane | |
| Peak Wattage | 5,225 |
| Running Wattage | 4,275 |
| Running Amperage at 120V | 35.63 |
| Running Amperage at 240V | 17.81 |
| Runtime at 25% Load | 15 |
| Runtime at 50% Load | 8 |
| Engine & Emission Specifications | |
| Engine Manufacturer | DuroMax Power Equipment |
| Engine Type | 4-Stroke |
| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Engine Size | 224 cc |
| Engine Speed | 3600 RPM |
| Starting Type | Rocker Switch |
| Electric Start | Yes |
| Recoil Start | Yes |
| Fuel Delivery System | Carburetor |
| Fuel Types | Gasoline and Propane |
| Oil Cooling Type | Splash |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |
| Oil Capacity | 20.3 fluid oz |
| Suggested Propane Tank Size | 20 lbs. minimum |
| Automatic Low Oil Shutdown | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Ball Bearing |
| EPA Certified | Yes |
| CARB Certified | Yes |
| 50 State Emissions | Yes |
| Panel Specifications | |
| GFCI Outlets | Yes |
| Volt Meter | Analog |
| 5-20R | 2 |
| L14-30R | 1 |
| 12V Post | 1 |
| Generator Specifications | |
| Manufacturer | DuroMax Power Equipment |
| Part # | XP5500EH |
| Voltage | 120/240 Volts |
| Frequency | 60 Hertz |
| GFCI Outlets | Yes |
| Propane Hose & Regulator | Included |
| Winding Material | 100% Copper Windings |
| Automatic Voltage Regulator | Yes |
| Battery Type | 12V SLA |
| Battery Included | Yes |
| RV Ready | Yes |
| Home Backup Ready | Yes |
| Fuel Tank Capacity Gasoline | 4 Gallons |
| Fuel Gauge | Yes |

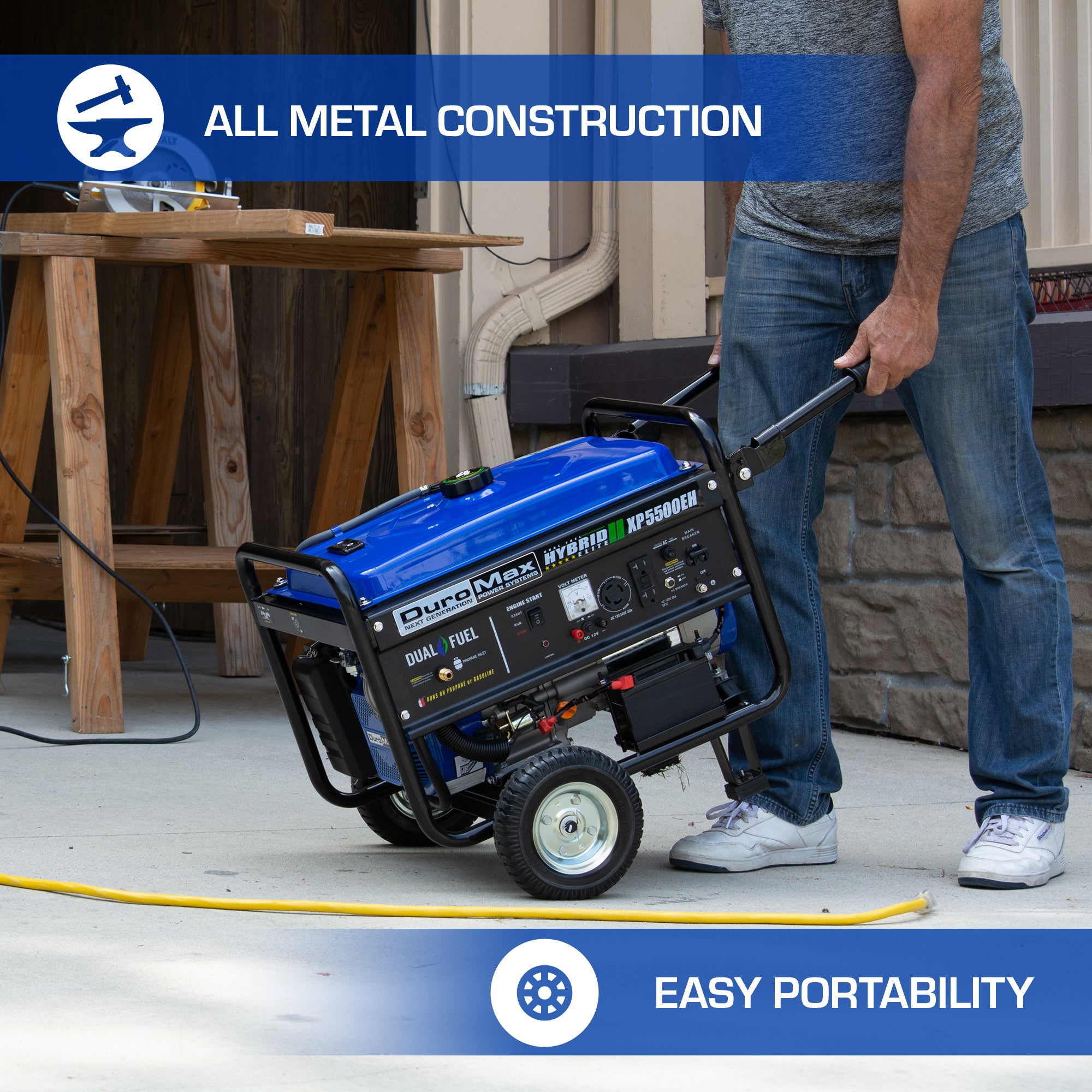

| All Metal Construction | Yes |
| Product Dimensions | 25″-Long x 22″-Wide x 22″-High |
| Product Dry Weight | 124-lbs |
| Product Weight | 136-lbs |
| Volume (db) | 69 dB |
| UPC | 811640014667 |
| Warranty | 3 Year |

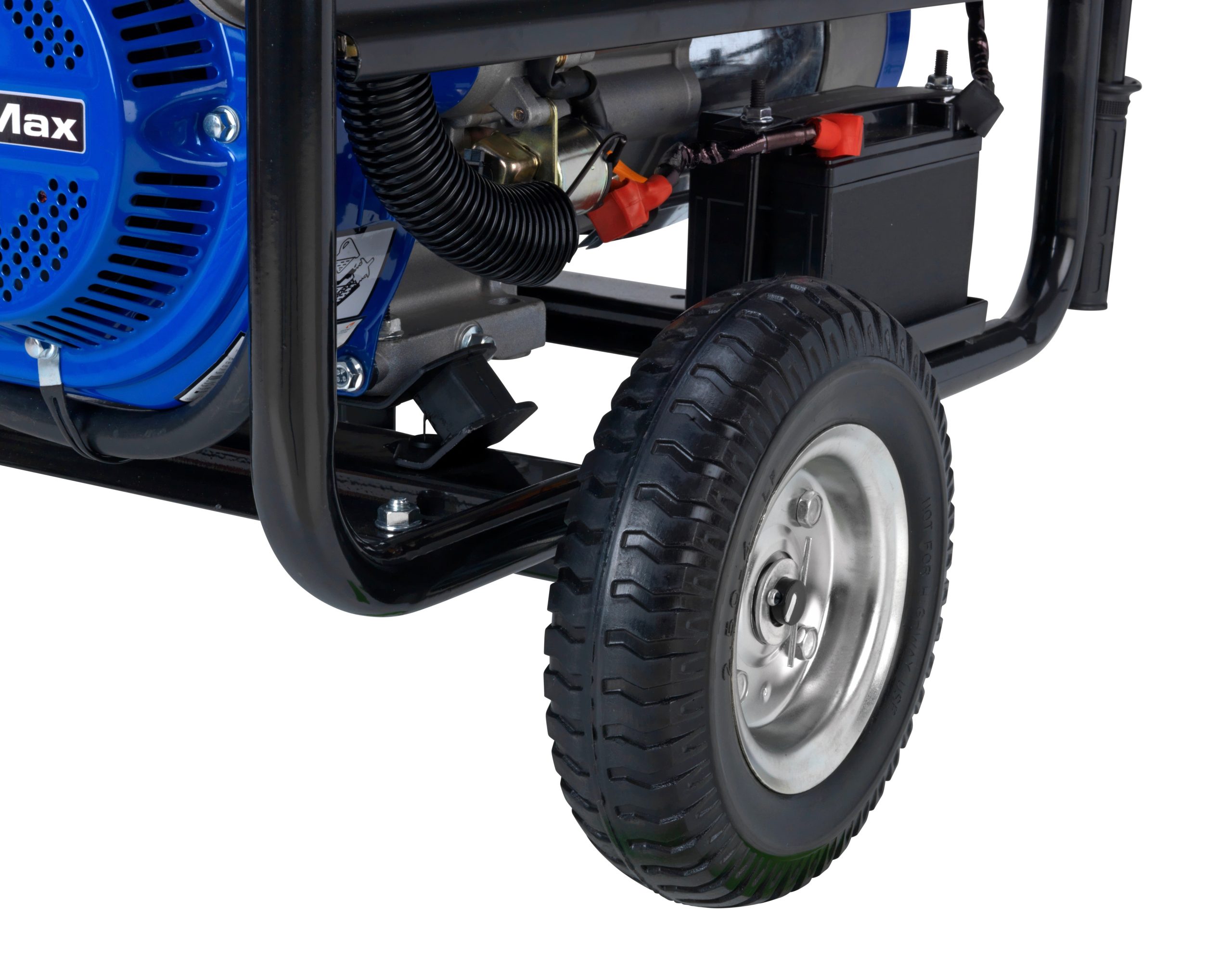

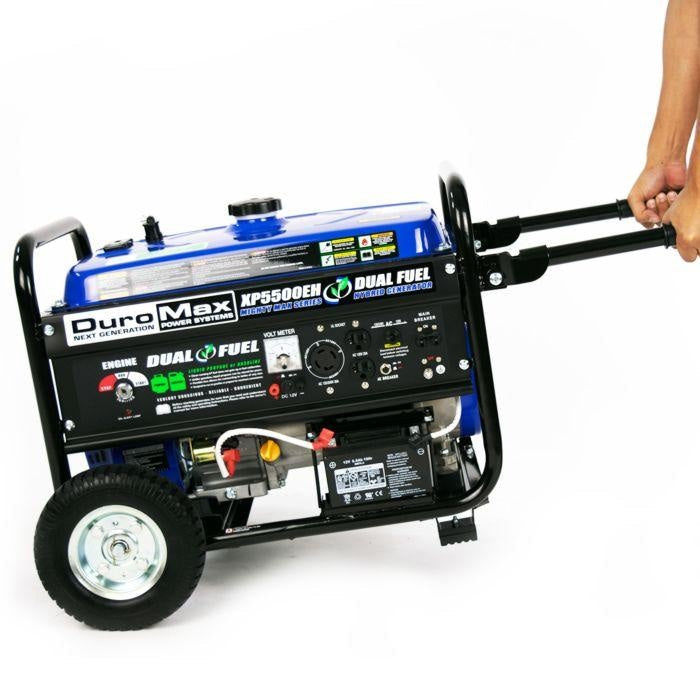

| Wheel & Handle Kit | Included |
| Wheel Type | Metal Hub |
| Wheel Diameter | 8-Inches |
| What’s in the Box? | XP5500EH, Oil Funnel, Spark Plug Wrench, Tool Set, Wheel & Handle Kit, DC Charging Cables, and Owners Manual |
