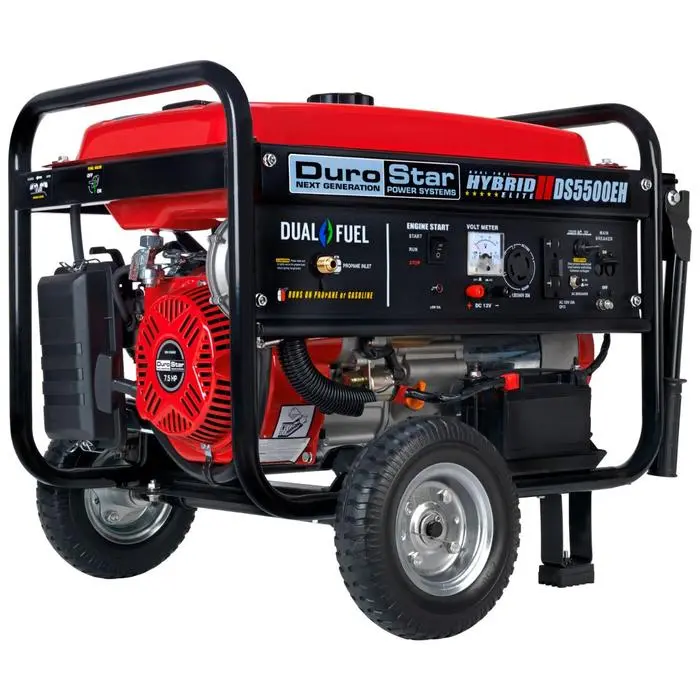

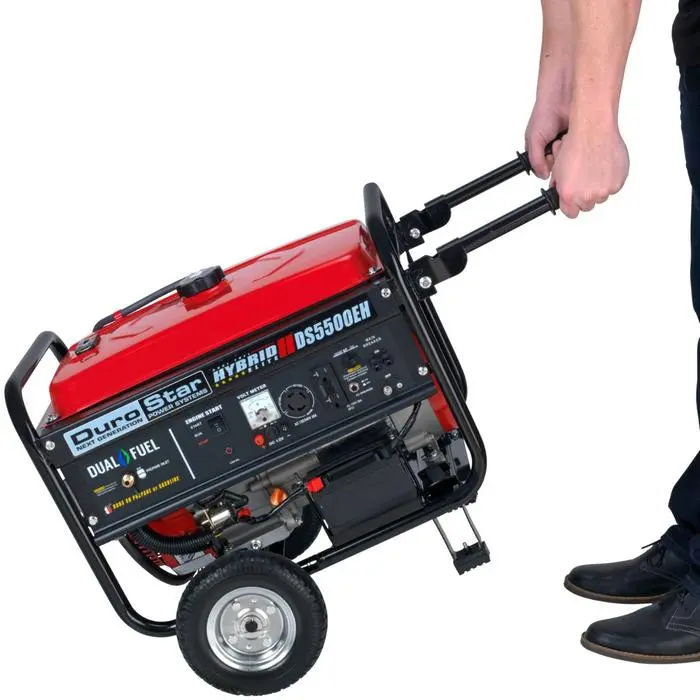

The DuroStar DS5500EH is the most powerful generator in its class. With 5,500 starting watts and 4,500 running watts, you’ll have plenty of power to keep your lights, home appliances and high-amperage tools running. This durable and versatile generator is perfect on the jobsite and is easy to transport for tailgating or camping. Our Dual Fuel Technology allows you to operate your generator on gasoline or liquid propane, giving you the flexibility of fuel choice.
|
Plenty of Power
|
With 5,500 starting watts and 4,500 running watts, this unit can handle heavy loads from lights and a refrigerator to a home air conditioner and high amperage power tools. |
|

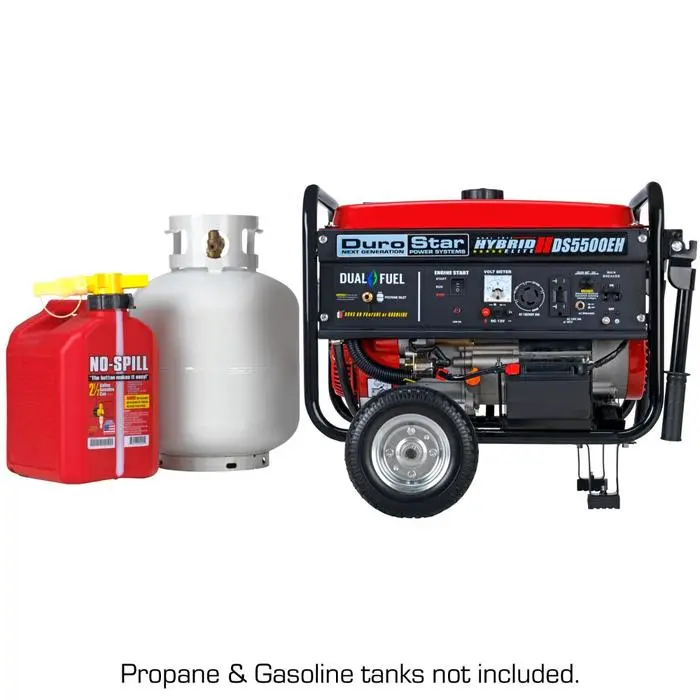

Dual Fuel Technology
|
This generator runs on gasoline or propane giving you the freedom and flexibility of fuel choice. |
|

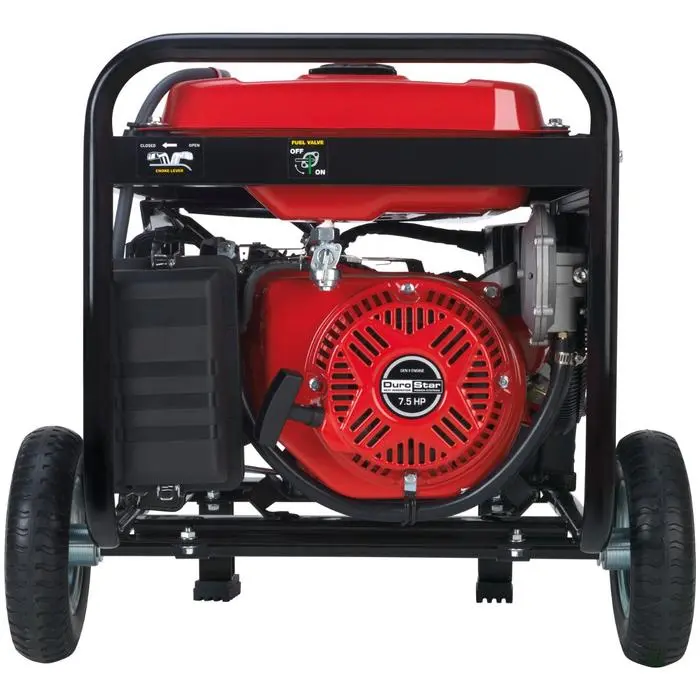

Powerful 7.5HP Engine
|
The DuroStar 225cc OHV engine is a workhorse that provides plenty of power to handle multiple jobs from powering high voltage appliances to heavy duty power tools. |
|
MX2 Technology
|
Get the maximum power from each of the 120 Volt Receptacle. Choose between operating the generator at both 120V and 240V simultaneously, or at 120 only with full power. Ideal for usage with Rv’s. |
|
Low Oil Shutoff
|
Protects your investment by automatically shutting the generator off when it senses that the oil is low. |
|

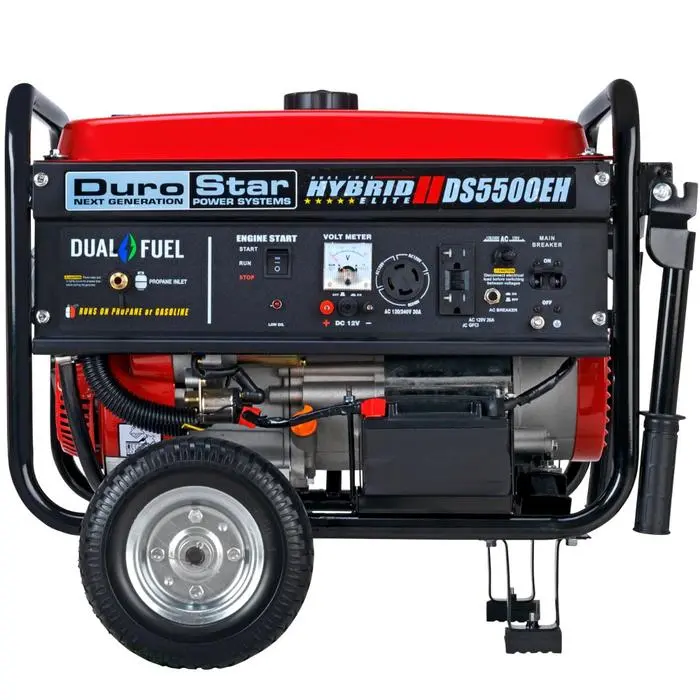

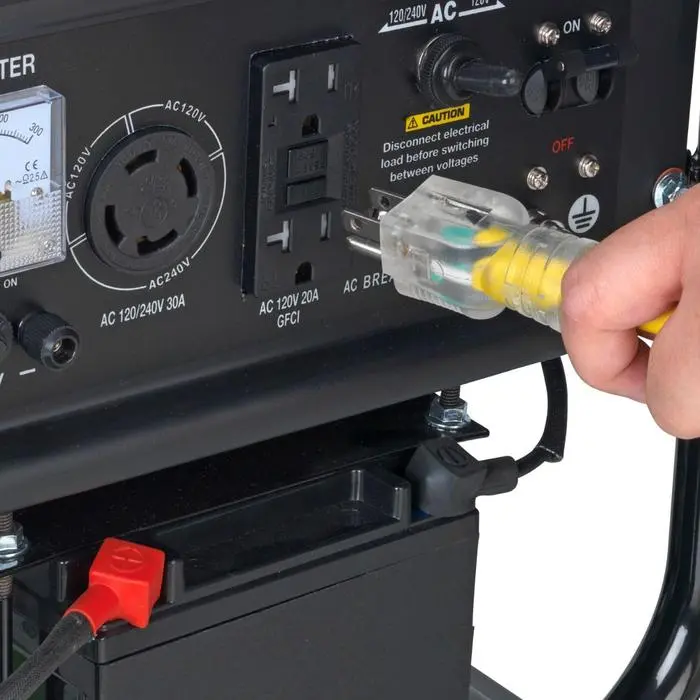

Fully Featured Power Panel
|
The power panel includes a wide selection of outlets for maximum compatibility in your applications including: 2 120V household GFCI outlets and 1 120/240V 30A twist lock outlet. The panel also includes a voltmeter and 12V DC charging posts for charging external batteries. |
|
Complies with Emissions Standards
|
All DuroStar generators are both approved by the EPA (Environmental Protection Agency) and CARB (California Air Resources Board) and follow strict guidelines to ensure our generators are as environmentally friendly as possible. |
| POWER SPECIFICATIONS | |
|
GASOLINE PEAK WATTS
|
5,500 |
|
PROPANE PEAK WATTS
|
5,225 |
|
GASOLINE RUNNING WATTS
|
4,500 |
|
PROPANE RUNNING WATTS
|
4,275 |
|
GASOLINE PEAK AMPS @ 120V
|
45.83 |
|
PROPANE PEAK AMPS @ 120V
|
43.54 |
|
GASOLINE RUNNING AMPS @120V
|
37.50 |
|
PROPANE RUNNING AMPS @120V
|
35.63 |
|
GASOLINE PEAK AMPS @ 240V
|
22.92 |
|
PROPANE PEAK AMPS @ 240V
|
21.77 |
|
GASOLINE RUNNING AMPS @ 240V
|
18.75 |
|
PROPANE RUNNING AMPS @ 240V
|
17.81 |
| PRODUCT SPECIFICATIONS | |
|
AMPERAGE
|
37.50A / 18.75A |
|
VOLTAGE
|
120V / 240VAC & 12VDC |
|
FREQUENCY
|
60Hz |
|
HORSEPOWER
|
7.5 HP |
|
ENGINE SIZE
|
225cc |
|
ENGINE TYPE
|
4-CYCLE AIR-COOLED SPARK-IGNITION |
|
ENGINE SPEED
|
3600 RPM |
|
FUEL TYPE
|
GASOLINE / PROPANE |
|
FUEL TANK CAPACITY (GASOLINE)
|
3.96 GALLONS |
|
SUGGESTED TANK SIZE (PROPANE)
|
20 lb. |
|
RUNTIME (GASOLINE) AT 1/2 LOAD
|
8.92 HOURS |
|
RUNTIME (PROPANE) AT 1/2 LOAD
|
7.63 HOURS |
|
START TYPE
|
ELECTRIC / RECOIL |
|
VOLUME LEVEL
|
69dB |
|
EPA CERTIFIED
|
YES |
|
CARB CERTIFIED
|
YES |
|
CSA CERTIFIED
|
NO |
|
PRODUCT DIMENSIONS
|
24″ L x 17″ W x 17″ H |
|
PRODUCT WEIGHT
|
127 LBS |
|
UPC
|
811640015695 |
|
WARRANTY
|
3-YEAR |
|
OUTLETS
|
2 – 120V 20A GFCI Outlet (5-20R) 1 – 120/240V 30A Twist Lock (L14-30R) |
|
INCLUDED IN THE BOX
|
Oil Funnel Spark Plug Wrench Tool Set Wheel & Handle Kit DC Charging Cables Owner’s Manual |
