Gree 18,000 BTU 16 SEER Ceiling Cassette Ductless Mini Split Air Conditioner Heat Pump 208/230V

Our G10 inverter technology saves energy, reduces outdoor noise and keeps room temperature steady by eliminating the harsh starts & stops of conventional systems. And they’re available in a full range of capacities to perfectly match any size space, large or small. Best of all, the ultimate in reliable room comfort is generated with R410A refrigerant.

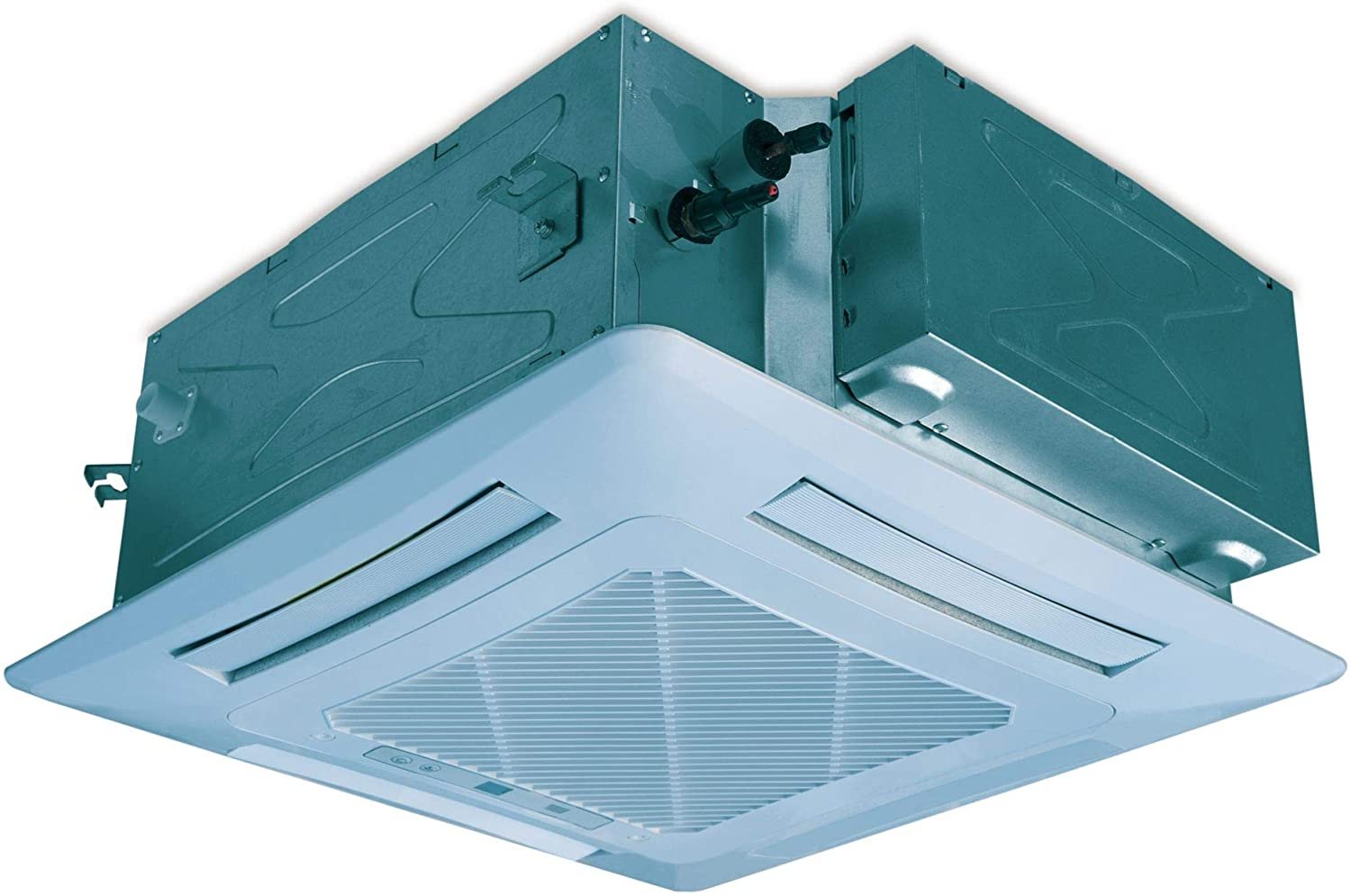

Gree Ceiling Cassette

Grees Ceiling Cassette will inconspicuously provide quiet performance through innovative design. The Ceiling Cassette is extremely suitable for any room, and can be easy installed in suspended ceilings with only a discreet decorative discharge grille visible. Grees fan technology quietly and evenly distributes conditioned air throughout the room, and an internal condensate pump reliably disposes condensate water to a safe location. The Ceiling Cassette is ideal for light commercial applications which require comfort control in large, open spaces. Each Ceiling Cassette can be operated by an infrared remote control or wired tether controller, allowing maximum flexibility for any application.

Cassette Sizing:

These Ceiling Cassettes are physically LARGE units and are not suitable for all ceiling types. Please refer to the installation manual located in the Documents tab for more details and dimensions.

Gree Concealed Duct

Compact and powerful, the Gree Concealed Duct indoor units offer the ultimate in flexibility and discretion. These slim indoor units are designed to be concealed above suspended ceilings or within open closet spaces to deliver conditioned air via ducting and suitable ceiling or wall grilles. This arrangement provides immense flexibility, in terms of both the distribution of conditioned air and the type of grille or diffuser that best compliments the rooms styling. Each unit comes with an easy to operate wall mounted tether controller.

Gree Floor/Ceiling

Grees Universal Floor/Ceiling indoor units are designed to be suspended from a ceiling or mounted low on a wall. The slender and lightweight design is perfect for restaurants or hallways where wall space is limited. Aesthetically pleasing to the eye, the Universal Floor/ Ceiling units are a great fit beneath windows, in public or light commercial applications. Each unit can be operated by an infrared remote control or wired tether controller to allow maximum flexibility in any application.

Floor/Ceiling

Features and Benefits:

4-way Discharge Air

Multi Speed Fan

IR Remote Control

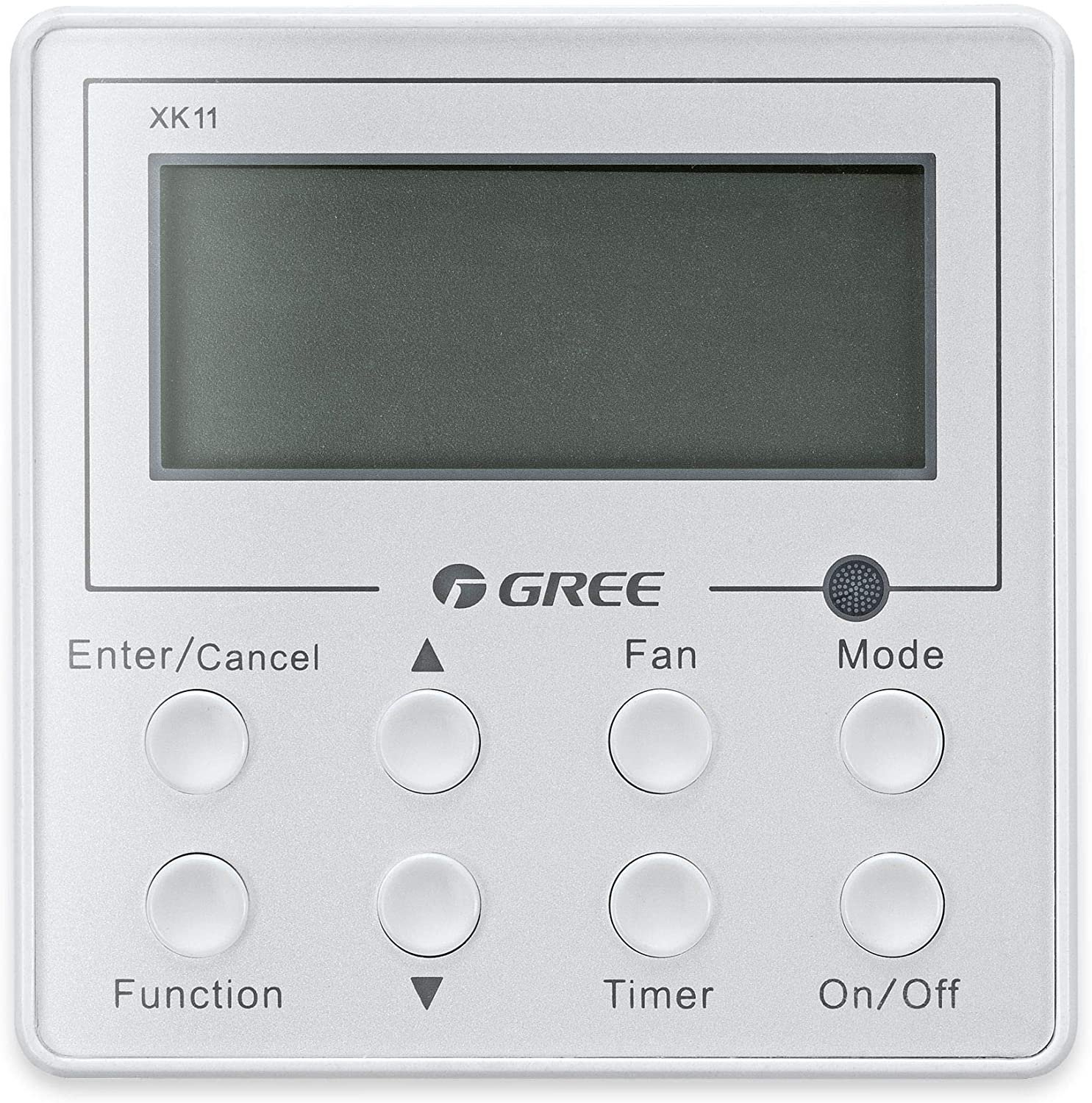

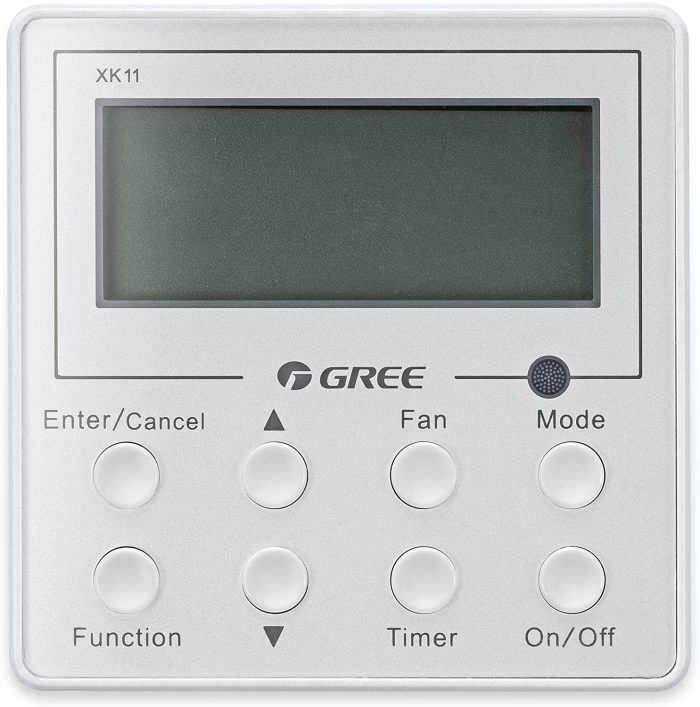

Tether Wired Controller

Swing Louver

Remote Control Lockout

Power Failure Recovery

Concealed Duct

Features and Benefits:

Medium Static Pressure Capability

Slim Line Construction 7-7/8 high

Flexible Return Air From Bottom or Rear

Internal Condensate Drain Pump

Sentry Float Switch

Environmentally Safe R-410A Refrigerant

Ceiling Cassette

Features and Benefits:

4 – way Discharge Air

Multi Speed Fan Remote Control Lockout

Swing Louver

Cleanable Air Filter

Decorative Discharge Air Grille (sold separately)

IR Remote Control and Tether Wired Controller

Power Failure Recovery Internal Condensate Drain Pump

Sentry Float Switch

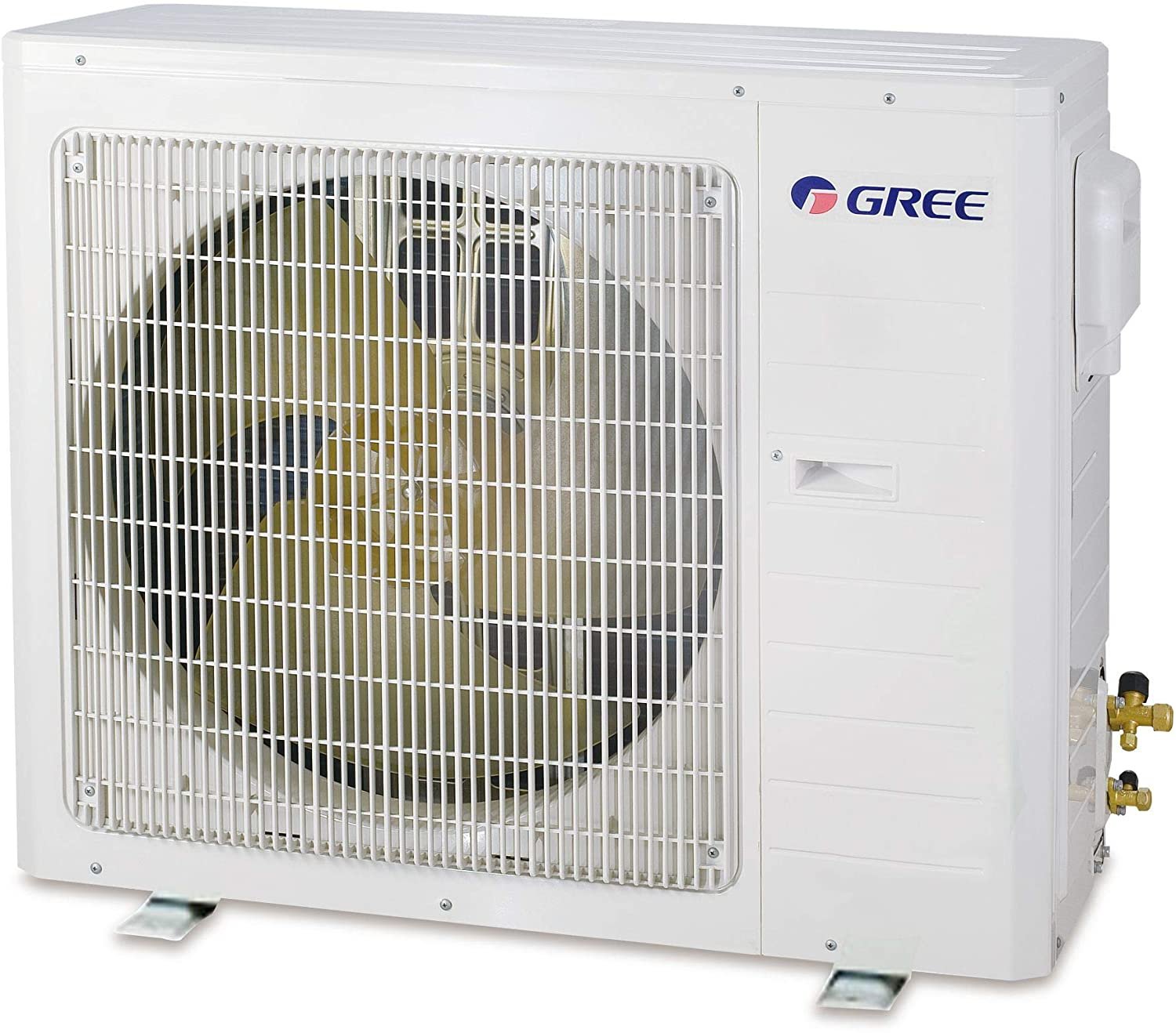

Outdoor Condenser

Features and Benefits:

G-10 Inverter control Heavy Gauge Steel Cabinet

Sound Levels down to 56 DB

Low Ambient Cooling down to 5 deg F

R410A Refrigerant Multi-point…

• The GREE U-Match UMAT18HP230V1AC-S is an 18,000 BTU ceiling cassette ductless mini split heat pump system. It’s an energy efficient 16 SEER system, and the ceiling cassette design will add inconspicuous climate control to any room.

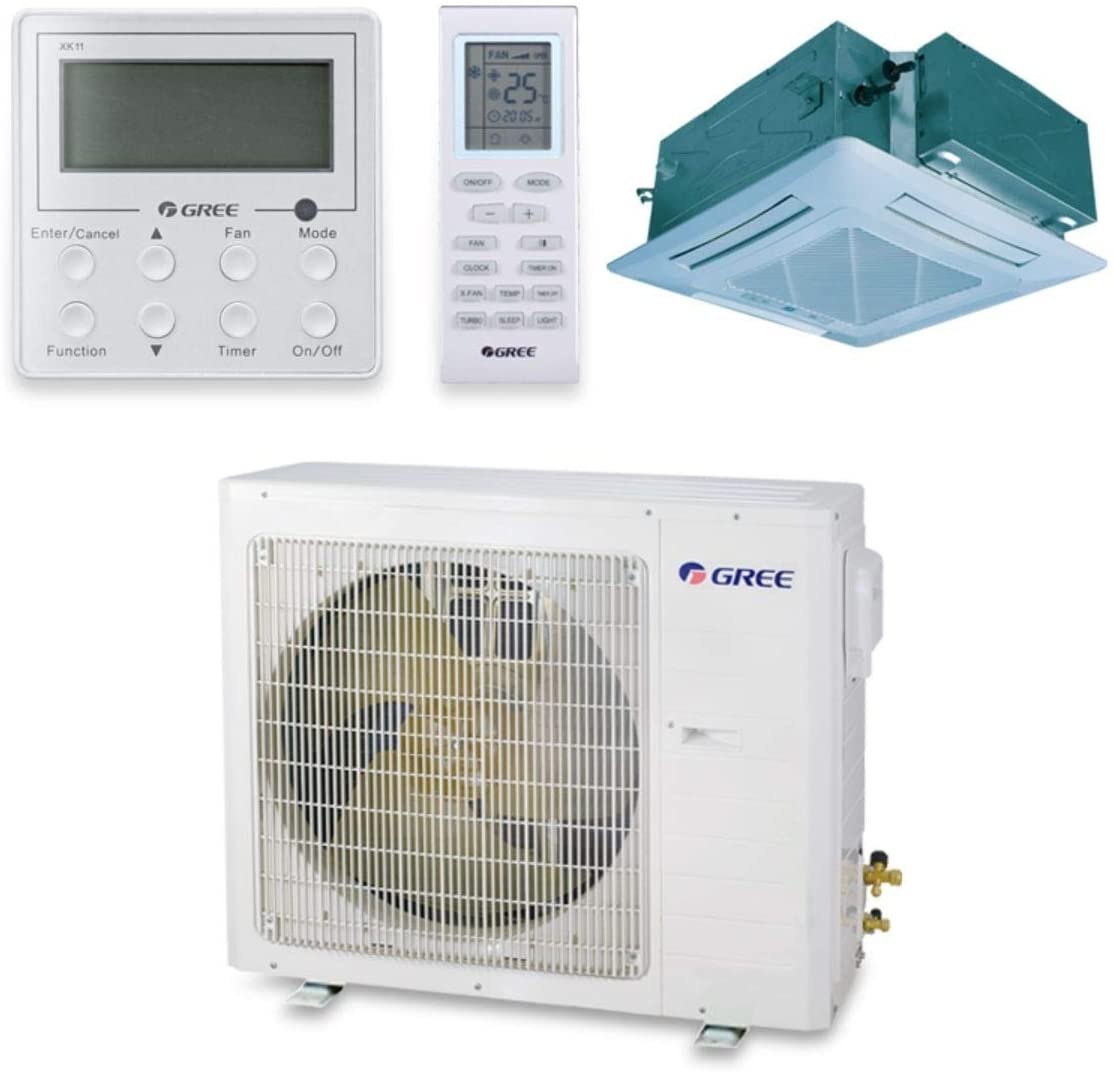

• System Includes: Outdoor Condenser Model: UMAT18HP230V1AO | Indoor Ceiling Cassette Model: UMAT18HP230V1AC | Grill for Ceiling Cassette Model: UMAT18GRILLE | Remote Controller: Handheld IR (Optional XK-60 Wall Mount Controller, SKU: 30294000007, must be ordered separately) | Required, but not included: 1/4″ x 1/2″ line set | Other accessories sold separately.

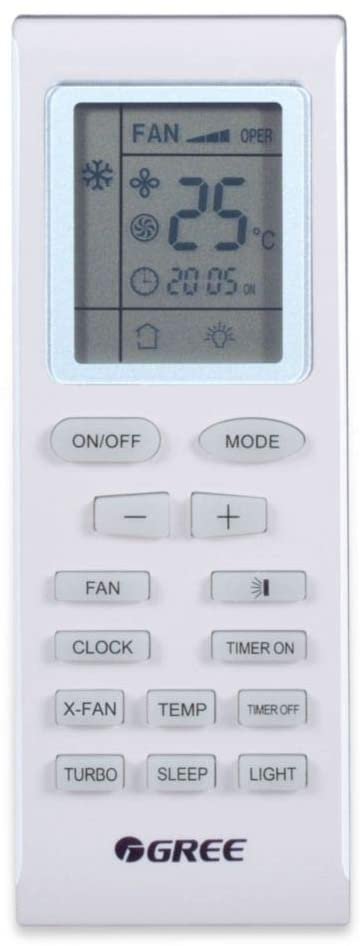

• Each ceiling cassette can be operated by infrared wireless remote control or wired controller mounted to the wall. Just like a wall-mounted ductless split, the air handler is connected to the outdoor condenser via a line set.
• This system uses a 1/4″ x 1/2″ line set and has a maximum line run of 66′ (20.1m). Room Size: 600 – 1,000 sqft | Tons: 1.5
• High Efficiency G10 Inverter Engineering Technology | 4-way discharge air | Quiet operation & sound pressure level at 56db (outdoor), down to 37db (indoor) | Cleanable air filter | Power failure recovery | Internal condensate drain pump | Low ambient cooling (5degs F) | Eco-friendly R410A refrigerant | Attractive, decorative grille cover | Sentry float switch in air handler
